Radiant Electronics Limited

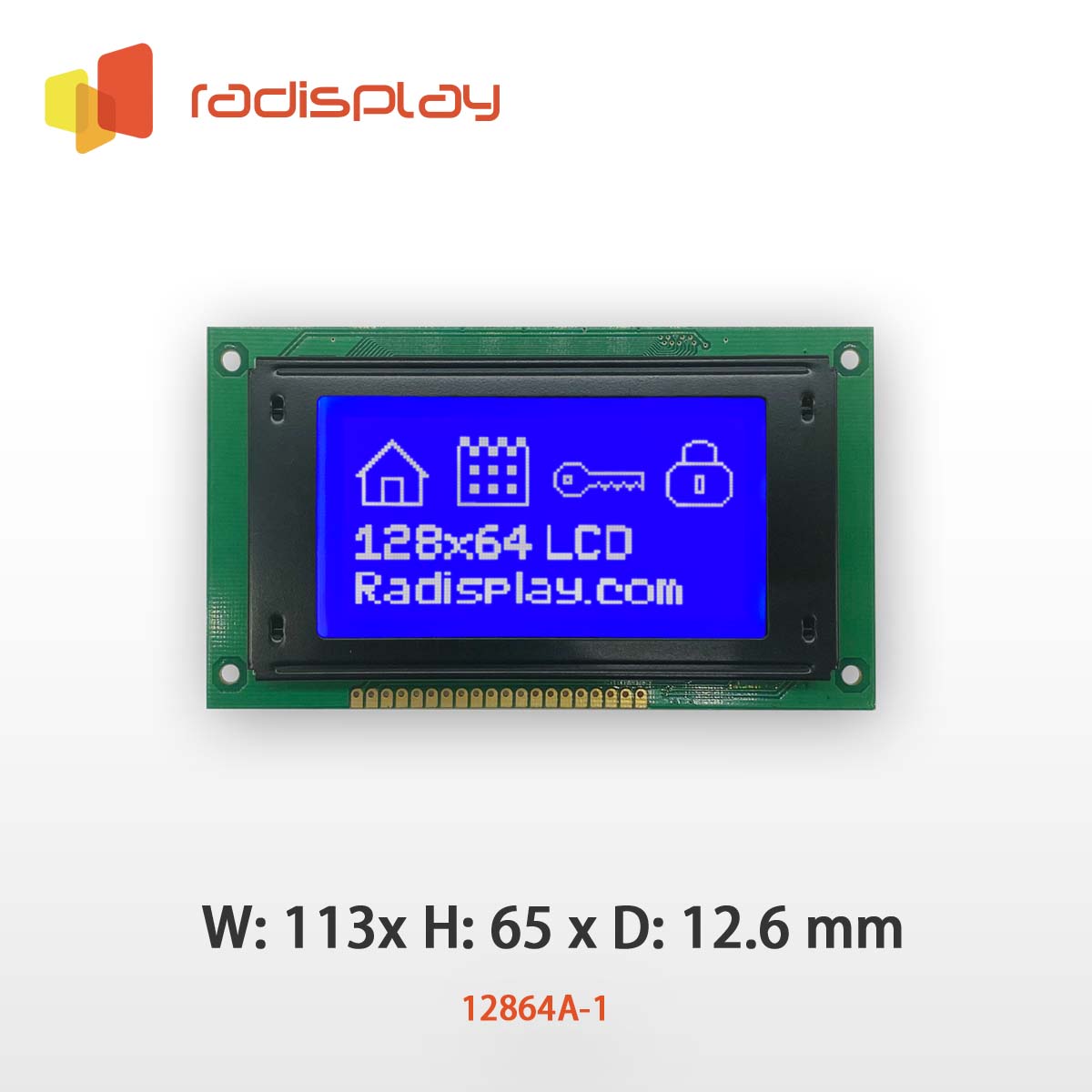

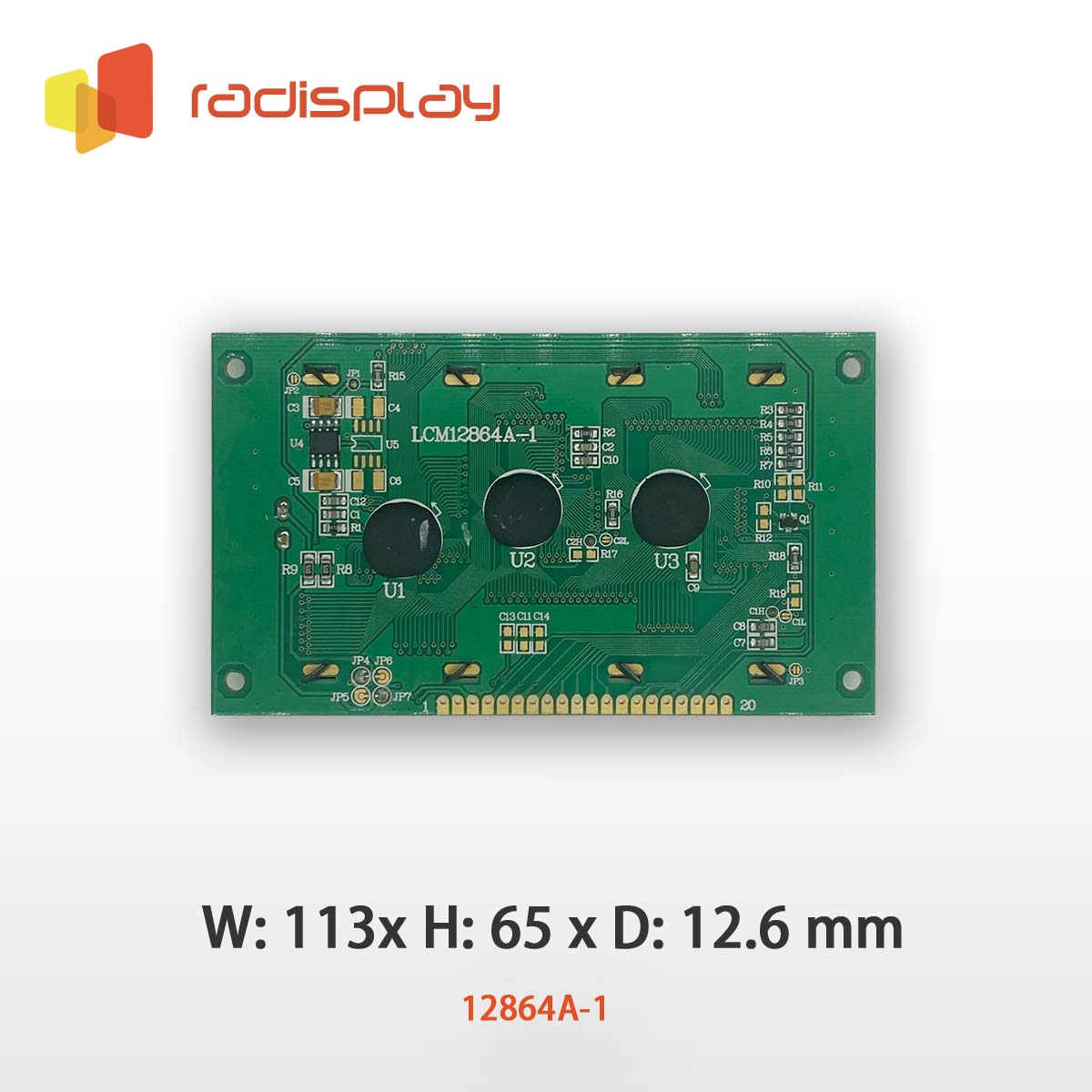

128x64 Dot matrix Graphic LCD (RD12864A-1)

RD12864A is widely used among 128x64 Graphic LCD displays.

The following color options are most widely ordered:

  • RD12864A-1-B White on Blue
  • RD12864A-1-Y Black on Yellow-Green
  • RD12864A-1-G Black on Gray

In addition, a wide range of options are available for this model, including:

  • Different Backlight
  • Different Voltage (3.3V, 5.0V and other customized voltage)
  • Different Interface (Including Serial SPI, I2C interface)
  • Different Temperature (Including Extended high temperature)



Specifications

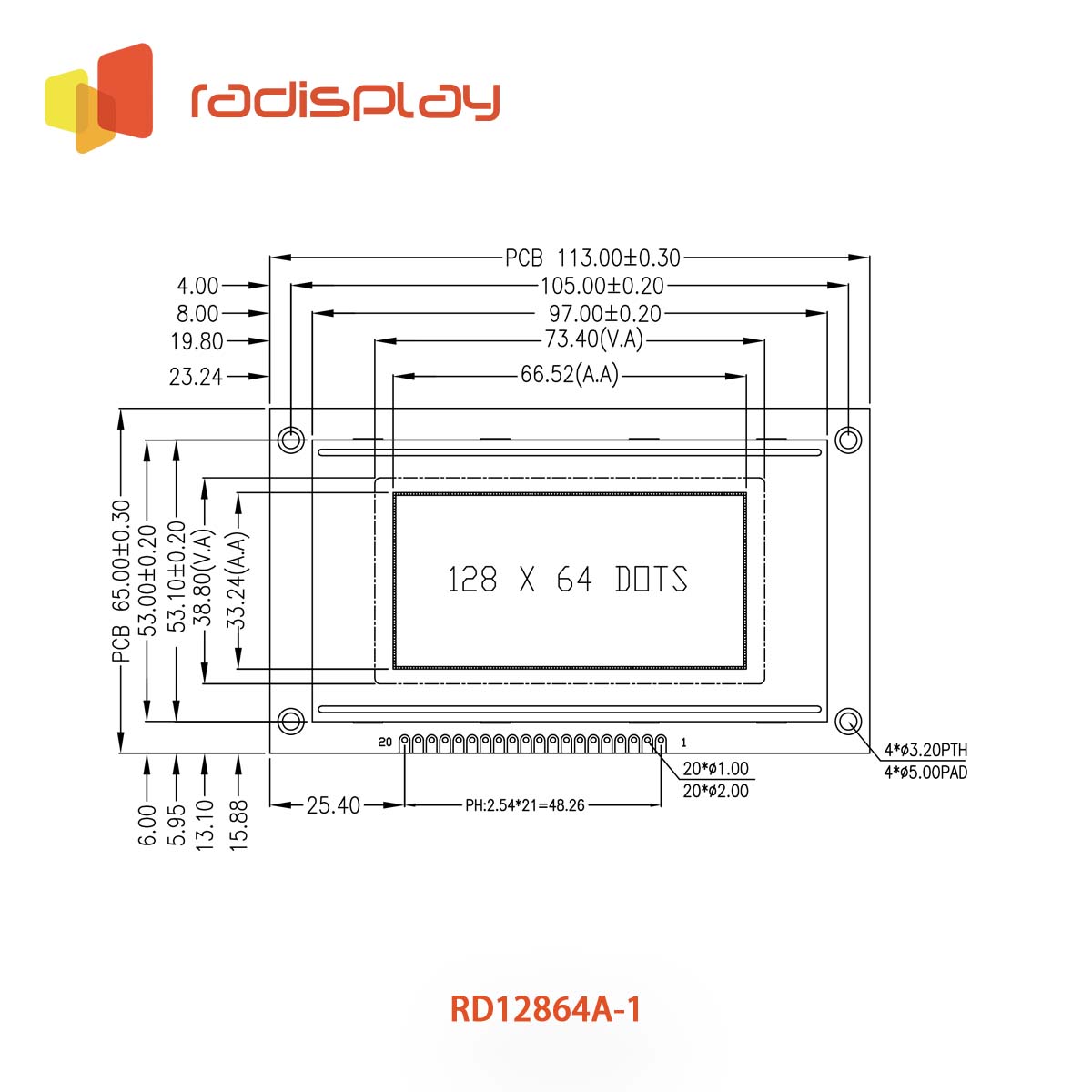

Module size(W x H x D) 113 x 65 x 12.9 mm
Viewing area(W x H) 73.4 x 38.8 mm
Character Size
Dot Size 0.48 x 0.48 mm
Dot pitch (W x H) 0.52 x 0.52 mm
Interface 8-bit Parallel or Serial interface
Driver Condition 1/32 Duty , 1/5 Bias
Driver IC ST7920
Operating temperature -20 - 70 ℃
