Radiant Electronics Limited

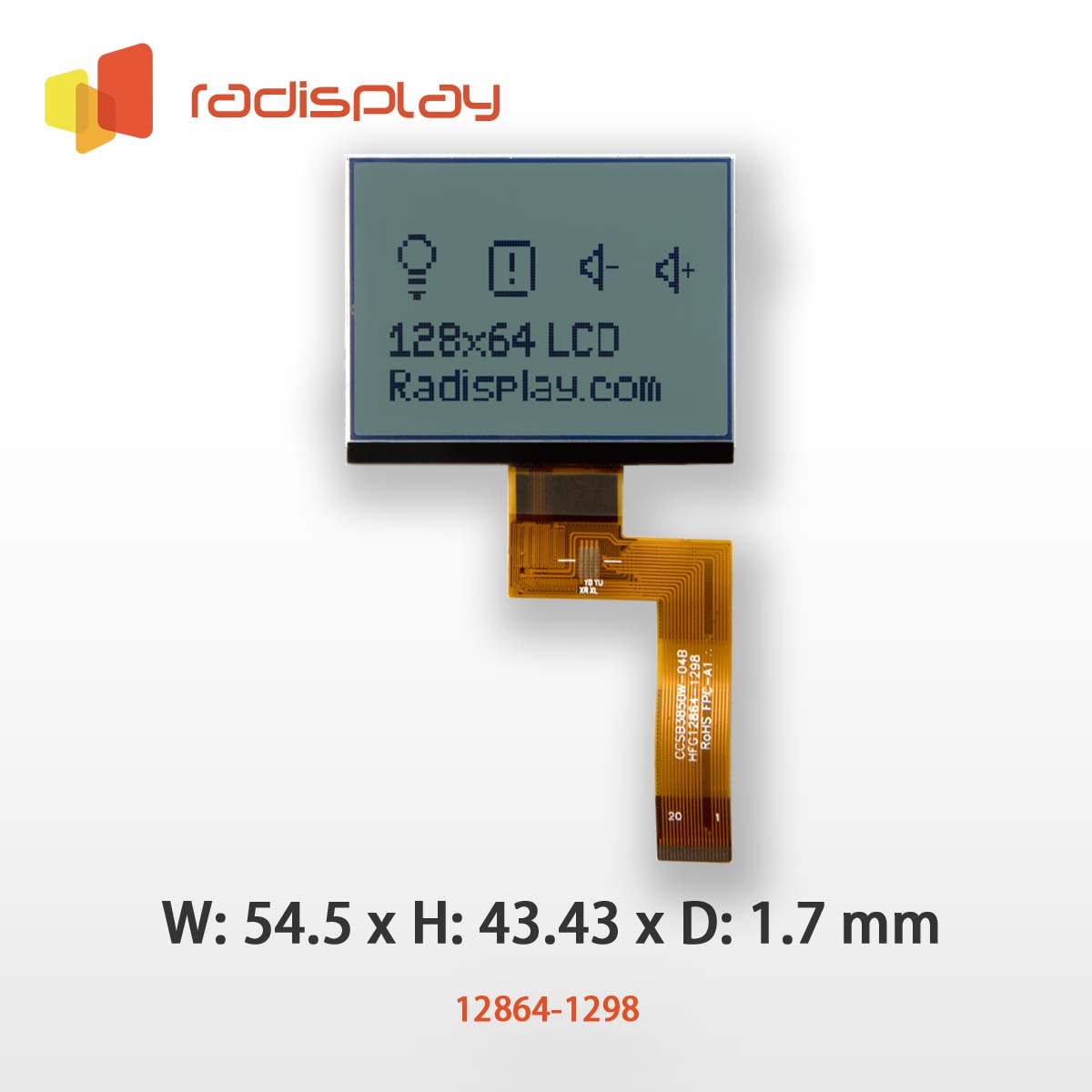

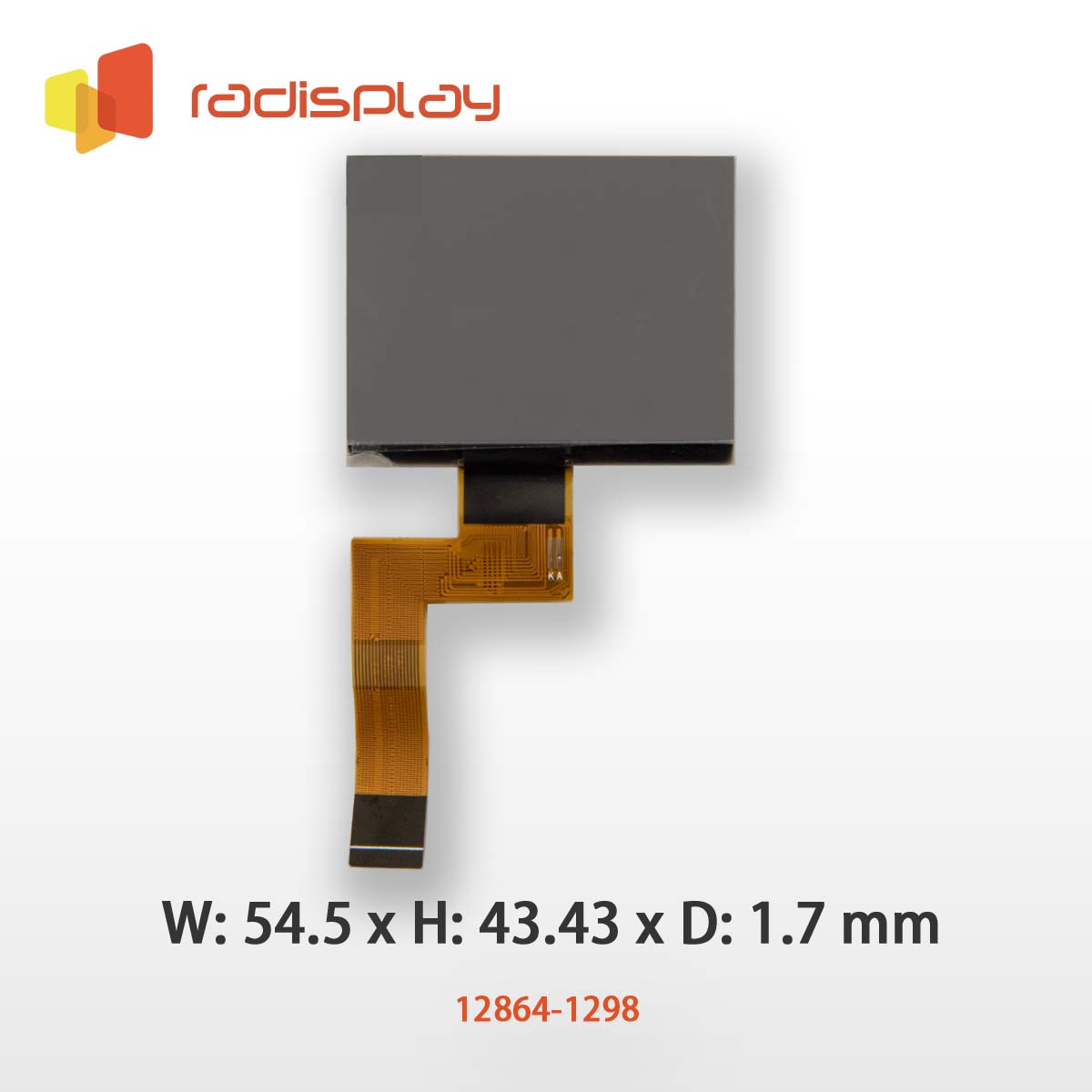

128x64 Graphic LCD (Chip on Glass) (RC12864-1298)

RC12864-1298 is a 128x64 Graphic LCD display with compact size & easy application . A wide range of options are available for this model, including:

  • Different display color options including Black on yellow, Black on white, White on blue
  • Different Backlight colors options available including no backlight
  • Different Temperature (Including Extended high temperature)

In addition, a wide range of customized options are available including different backlight structures, different FPC shapes,

Specifications

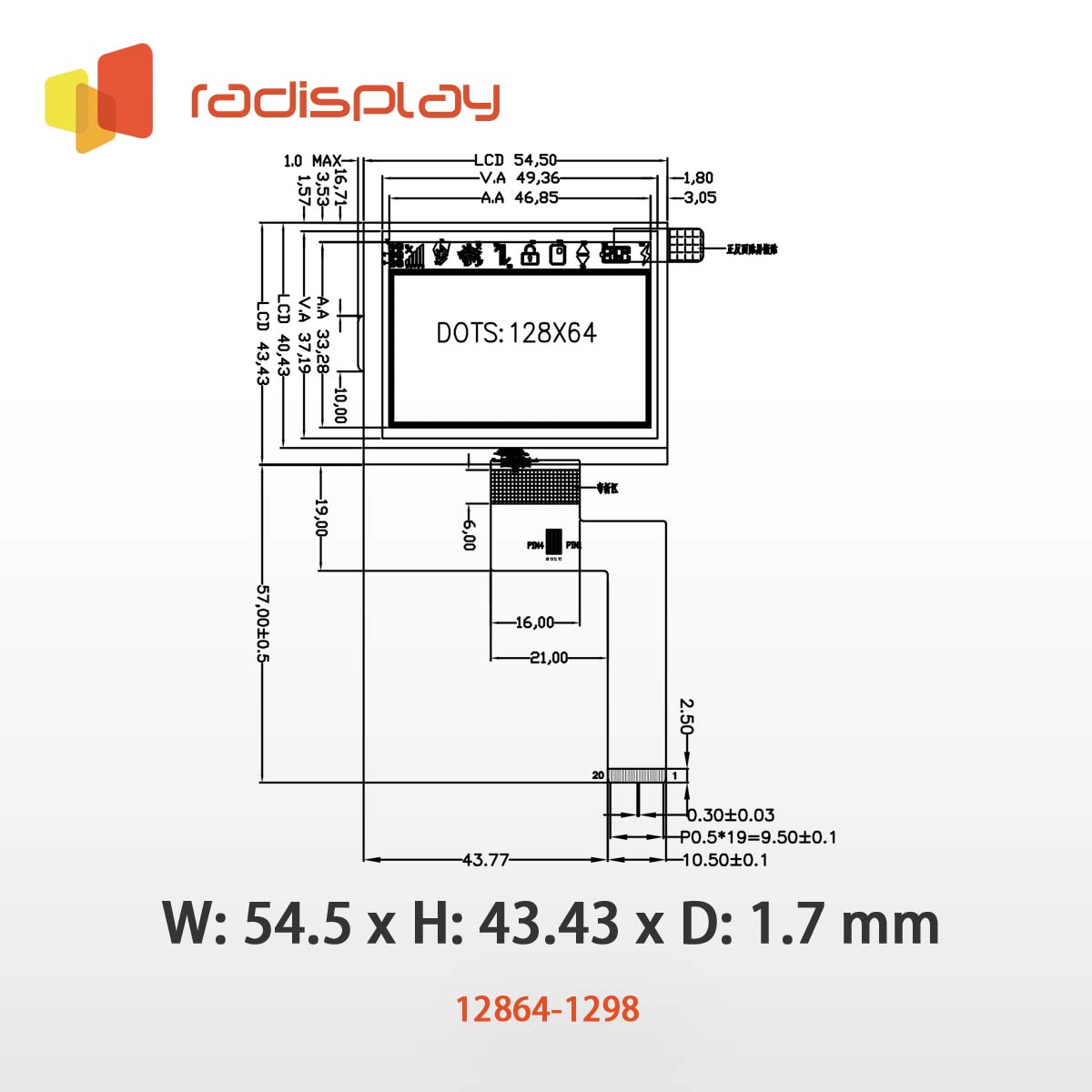

Module size(W x H x D) 54.50 x 43.43 x 1.7 mm
Viewing area(W x H) 49.36 x 37.19 mm
Character Size
Dot Size 0.341 x 0.418 mm
Dot pitch (W x H) 0.366 x 0.443 mm
Interface 8080 Parallel Interface
Driver Condition 1/65 Duty , 1/9 Bias
Driver IC ST7567A
Operating temperature -0 - 50 ℃
