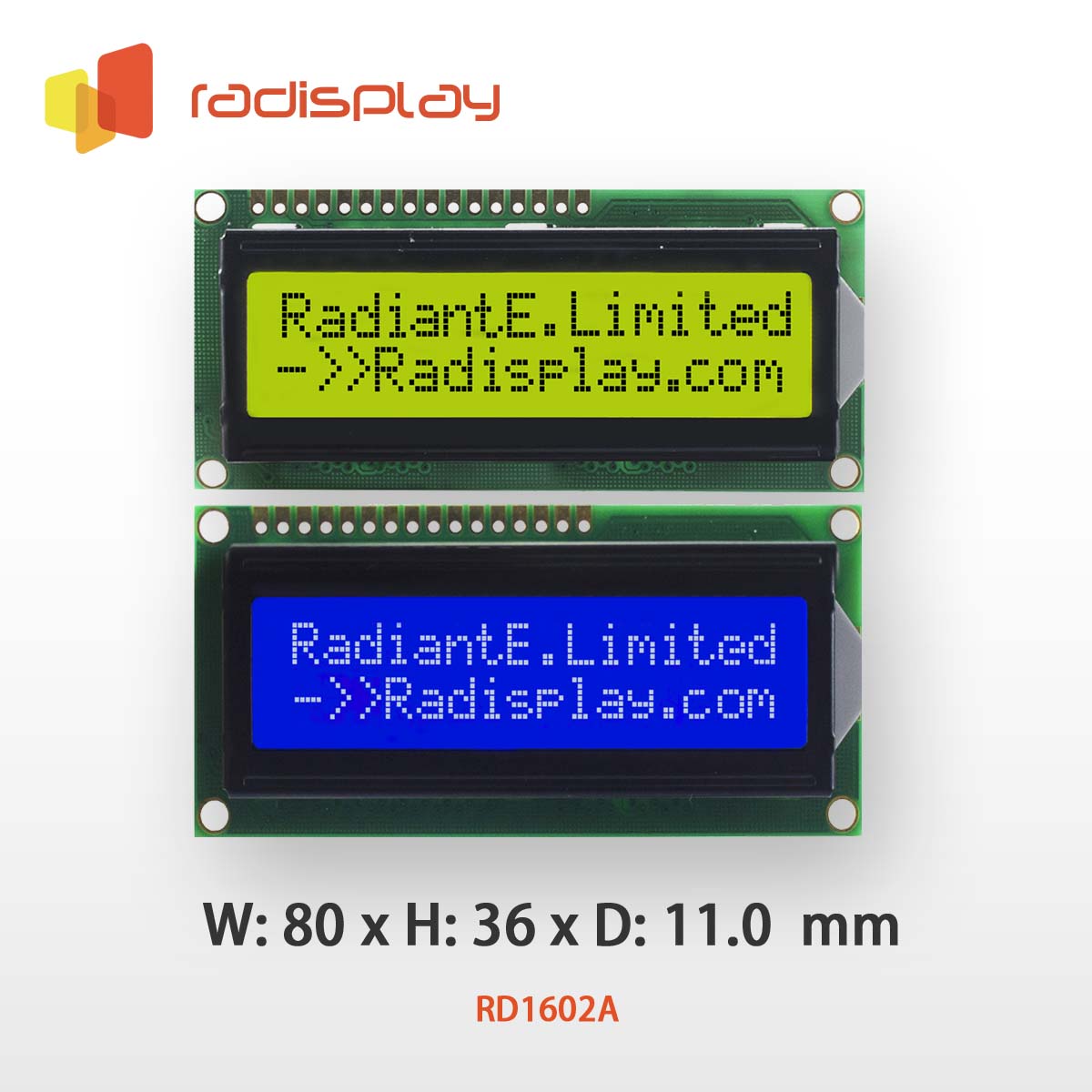

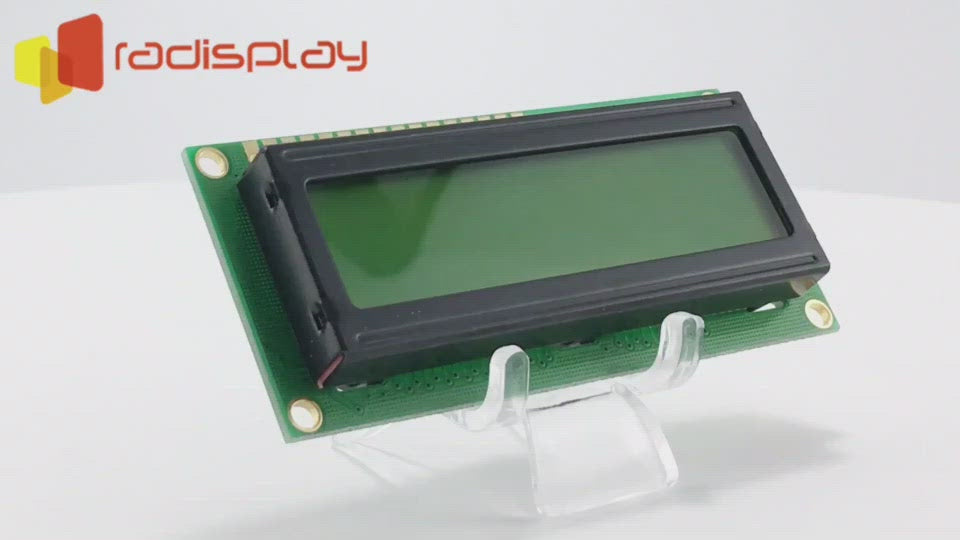

16x2 Character LCD Display Module (RD1602A-8)

RD1602A  is our most widely used, largest production volumn character LCD display.

The following color options are most widely ordered:

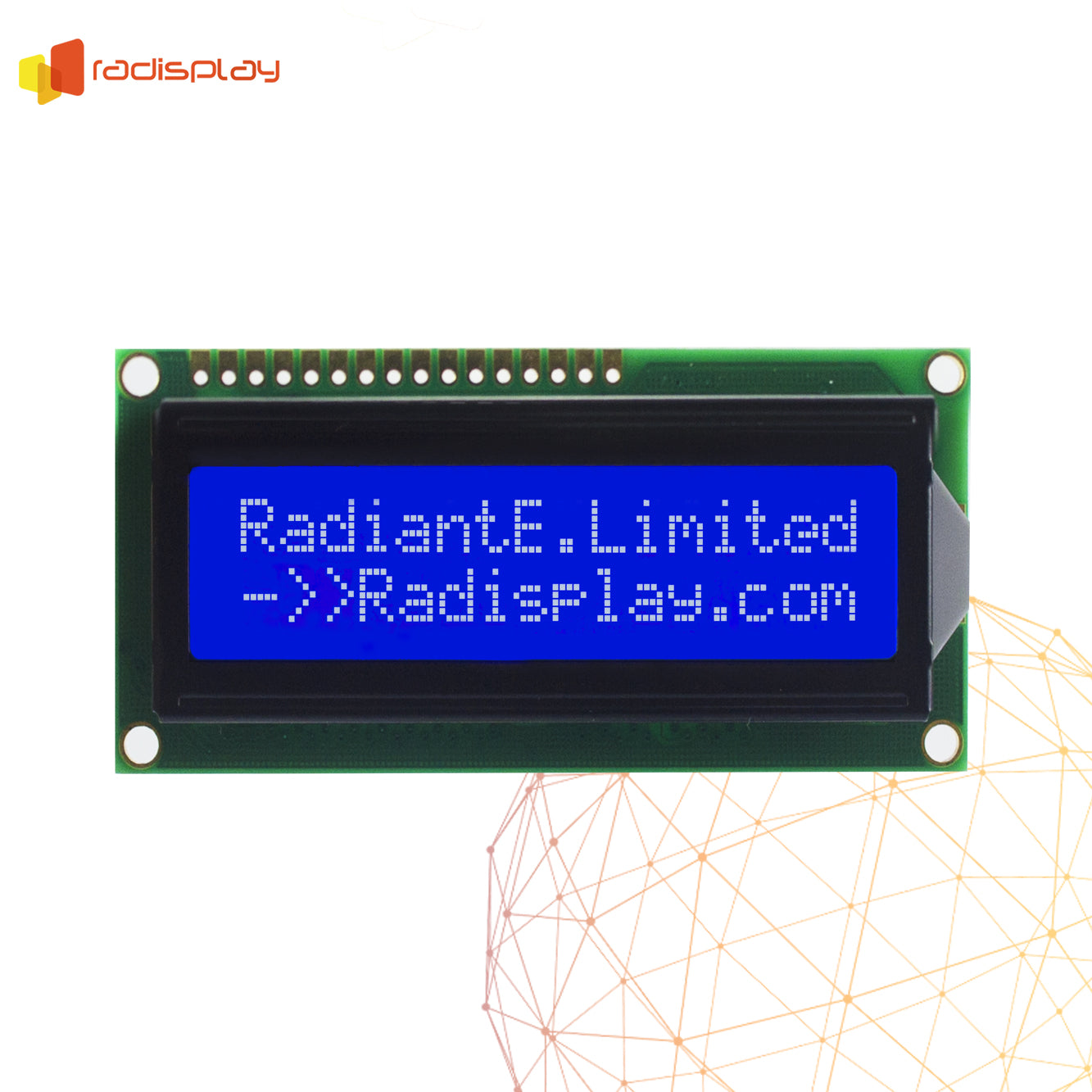

  • RD1602A-8-B White on Blue
  • RD1602A-8-Y Black on Yellow-Green
  • RD1602A-8-G Black on Gray

In addition, a wide range of options are available for this model, including:

  • Different Backlight & Color options (Including black color)
  • Different Voltage (3.3V, 5.0V and other customized voltage)
  • Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

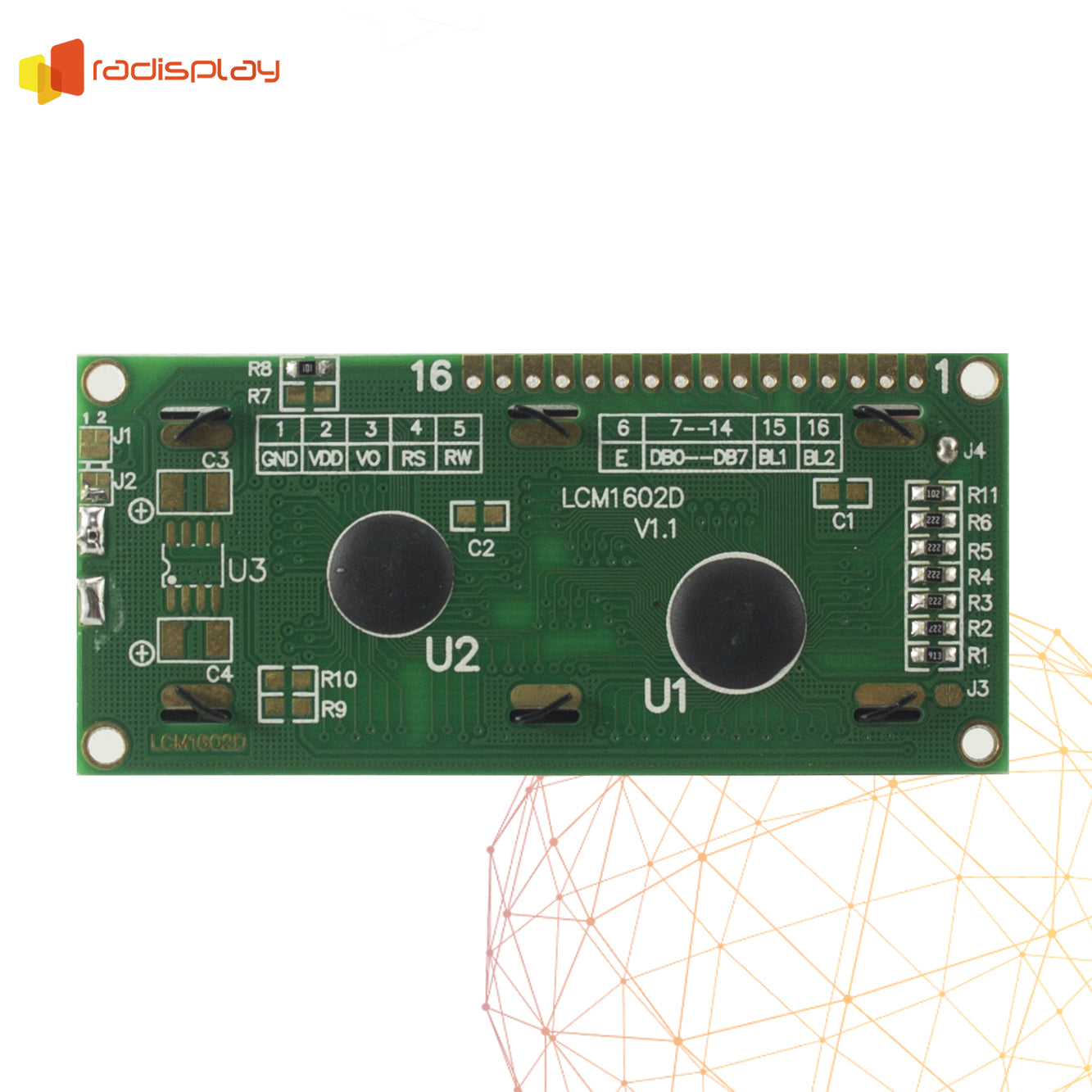

Specifications

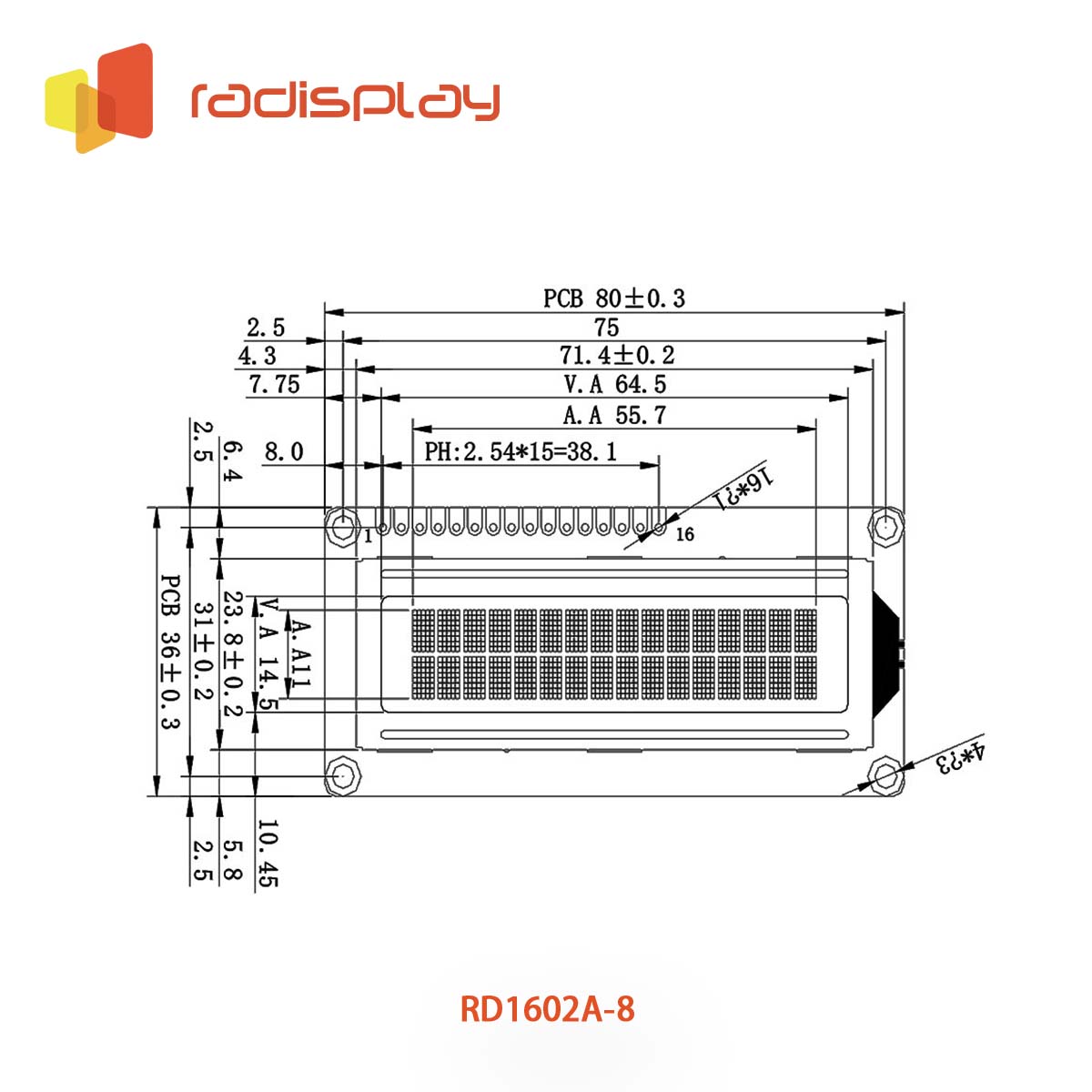

Module size（W x H x D） 80 x 36 x 11.0 mm
Viewing area（W x H) 80 x 36 x 11.0 mm
Character Size 2.9 x 5.15 mm
Dot Size 0.54 x 0.60 mm
Dot pitch (W x H) 0.59 x 0.65 mm
Interface 8-bit Parallel interface
Driver Condition 1/16 Duty , 1/5 Bias
Driver IC AIP31066
Operating temperature AIP31066

Datasheet

    Specification
