Radiant Electronics Limited

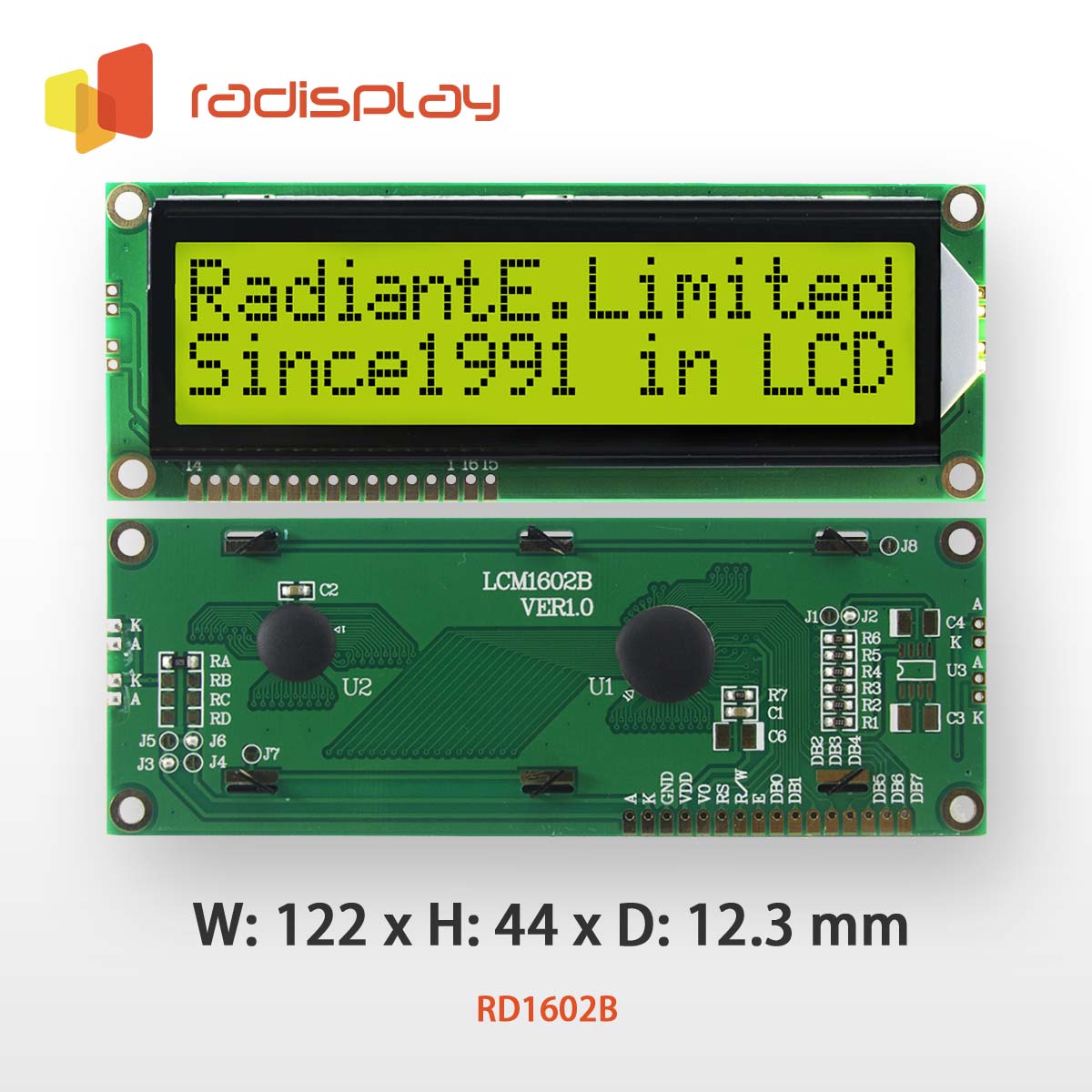

16x2 Character LCD Display Module, large character size (RD1602B)
RD1602B offers large character size among 16x2 character standard LCD displays.
The following color options are most widely ordered:
- RD1602B-B White on Blue
- RD1602B-Y Black on Yellow-Green
- RD1602B-G Black on Gray
A wide range of customized options are available for this model, including:
- Different Backlight & color options
- Different Voltage (3.3V, 5.0V and other customized voltage)
- Different Interface (Parallel, Serial SPI, I2C interface)
Specifications

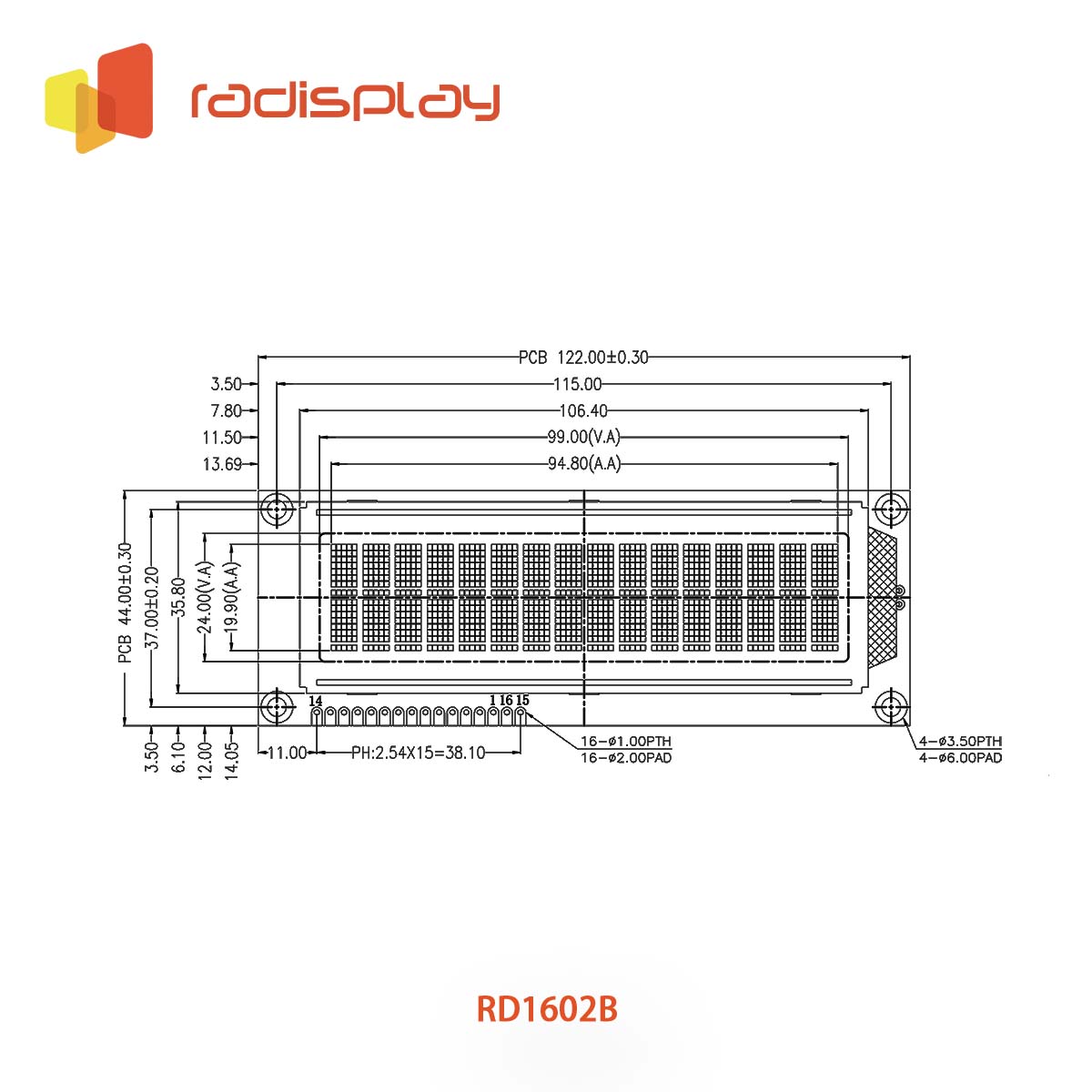

| Module size（W x H x D） | 122 x 44 x 12.3 mm |
| Viewing area（W x H) | 99 x 24 mm |
| Character Size | 4.8 x 7.95 mm |
| Dot Size | 0.88 x 1.05 mm |
| Dot pitch (W x H) | 0.98 x 1.15 mm |
| Interface | 8-bit Parallel interface |
| Driver Condition | 1/16 Duty , 1/5 Bias |
| Driver IC | AIP31066 |
| Operating temperature | -20 - 70 ℃ |
