Radiant Electronics Limited

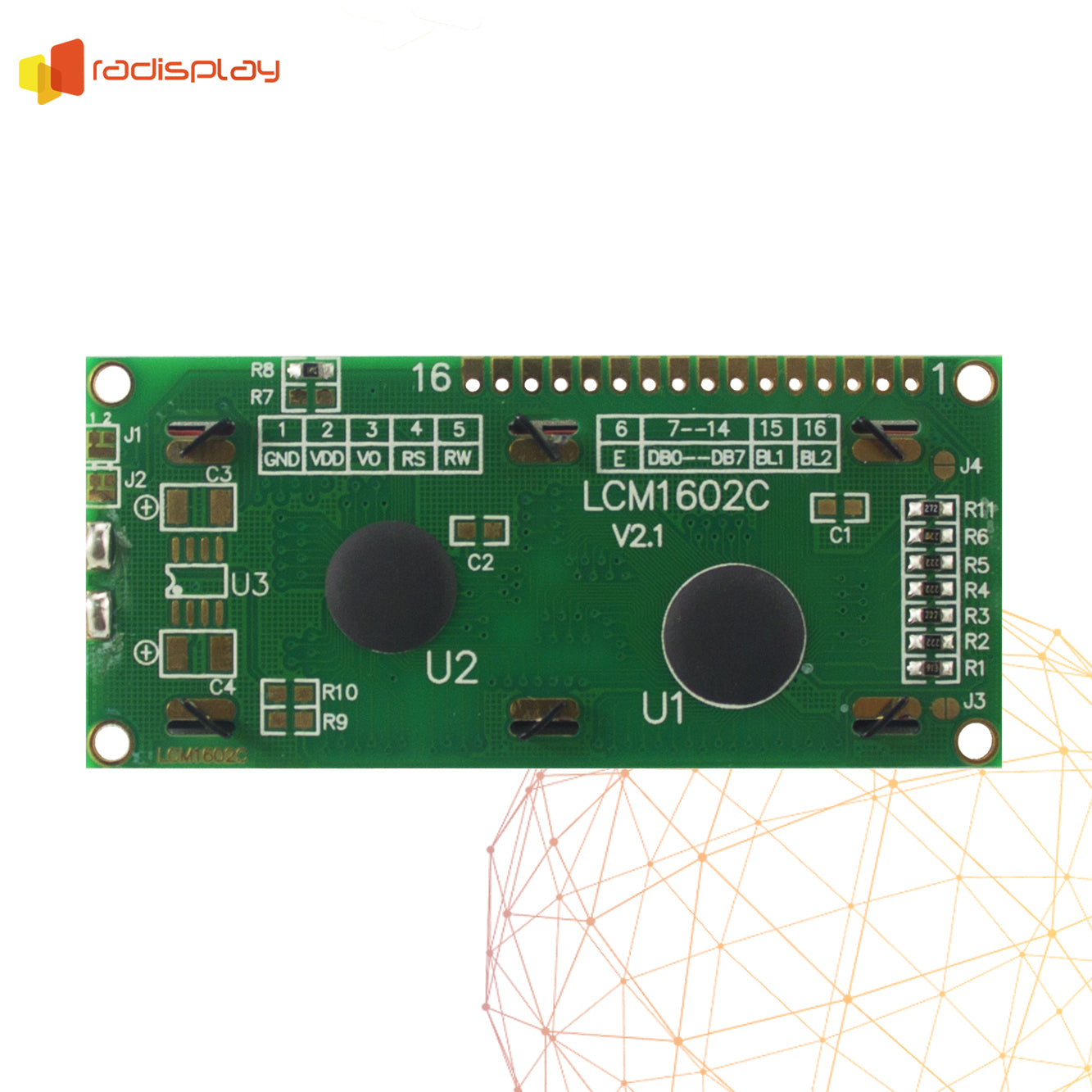

16x2 Character LCD Display Module, wider view area

RD1602C  is widely used among 16x2 Character LCD displays.

With a slightly wider viewing area than RD1602A.

The following color options are most widely ordered:

  • RD1602C-B White on Blue
  • RD1602C-Y Black on Yellow-Green
  • RD1602C-G Black on Gray

In addition, a wide range of customized options are available for this model, including:

  • Different backlight & color options (Including black color)
  • Different Voltage (3.3V, 5.0V and other customized voltage)
  • Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)


Module size(W x H x D) 80 x 36 x 11.8 mm
Viewing area(W x H) 64.3 x16 mm
Character Size 2.96 x 5.16 mm
Dot Size 0.56 x 0.61 mm
Dot pitch (W x H) 0.60 x 0.65 mm
Interface 8-bit Parallel interface
Driver Condition 8-bit Parallel interface
Driver IC AIP31066
Operating temperature -20 - 70 ℃
