8x2 Character LCD Display Module (RD0802A)
RD0802A is widely used among 8x2 Character LCD displays.
The following color options are most widely ordered:

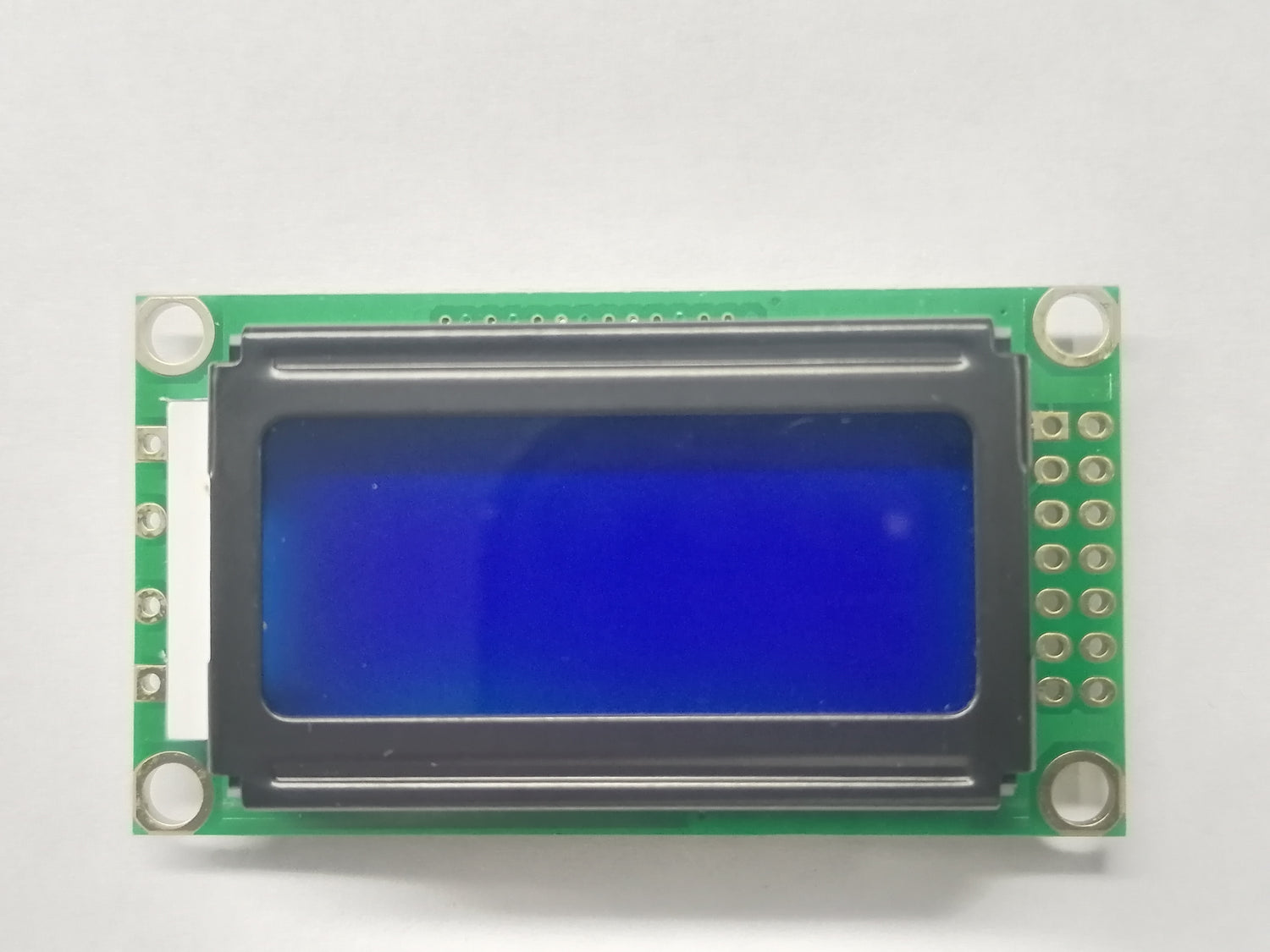

- RD0802A-B White on Blue

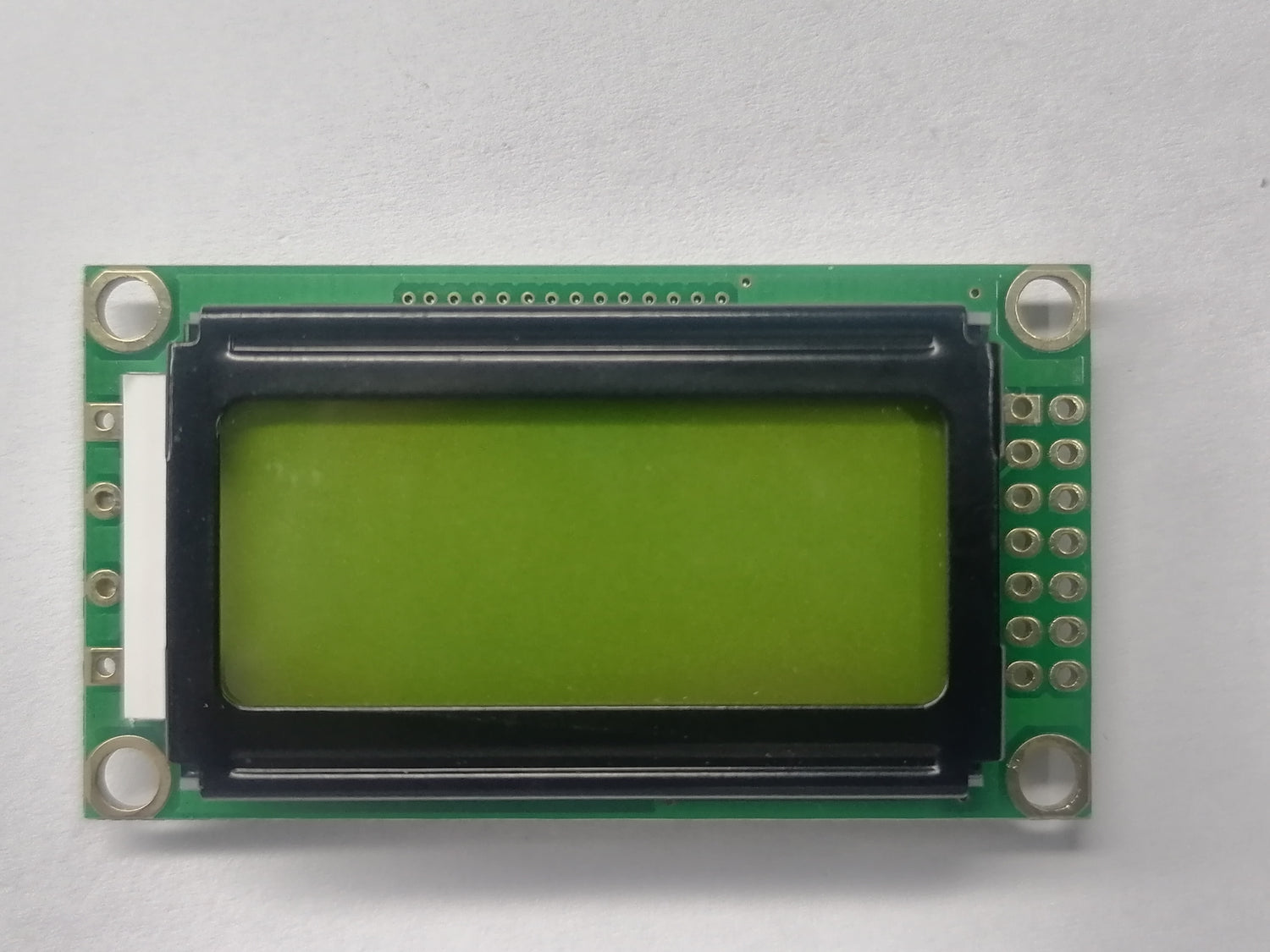

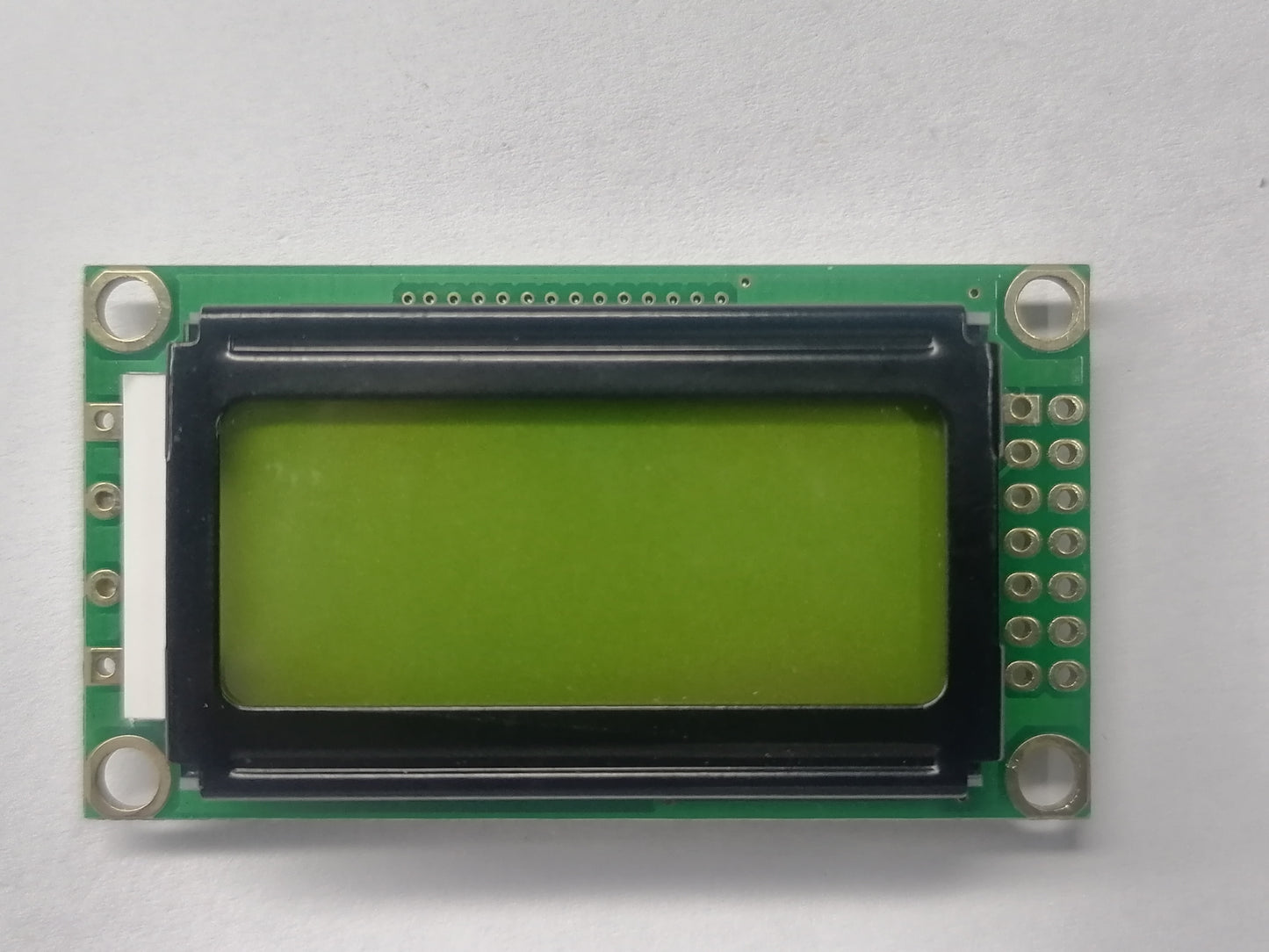

- RD0802A-Y Black on Yellow-Green
- RD0802A-G Black on Gray
In addition, a wide range of customized options are available for this model, including:
- Different Backlight & Color options (Including black color)
- Different Voltage (3.3V, 5.0V and other customized voltage)
- Different Interface (Including Serial SPI I2C interface)

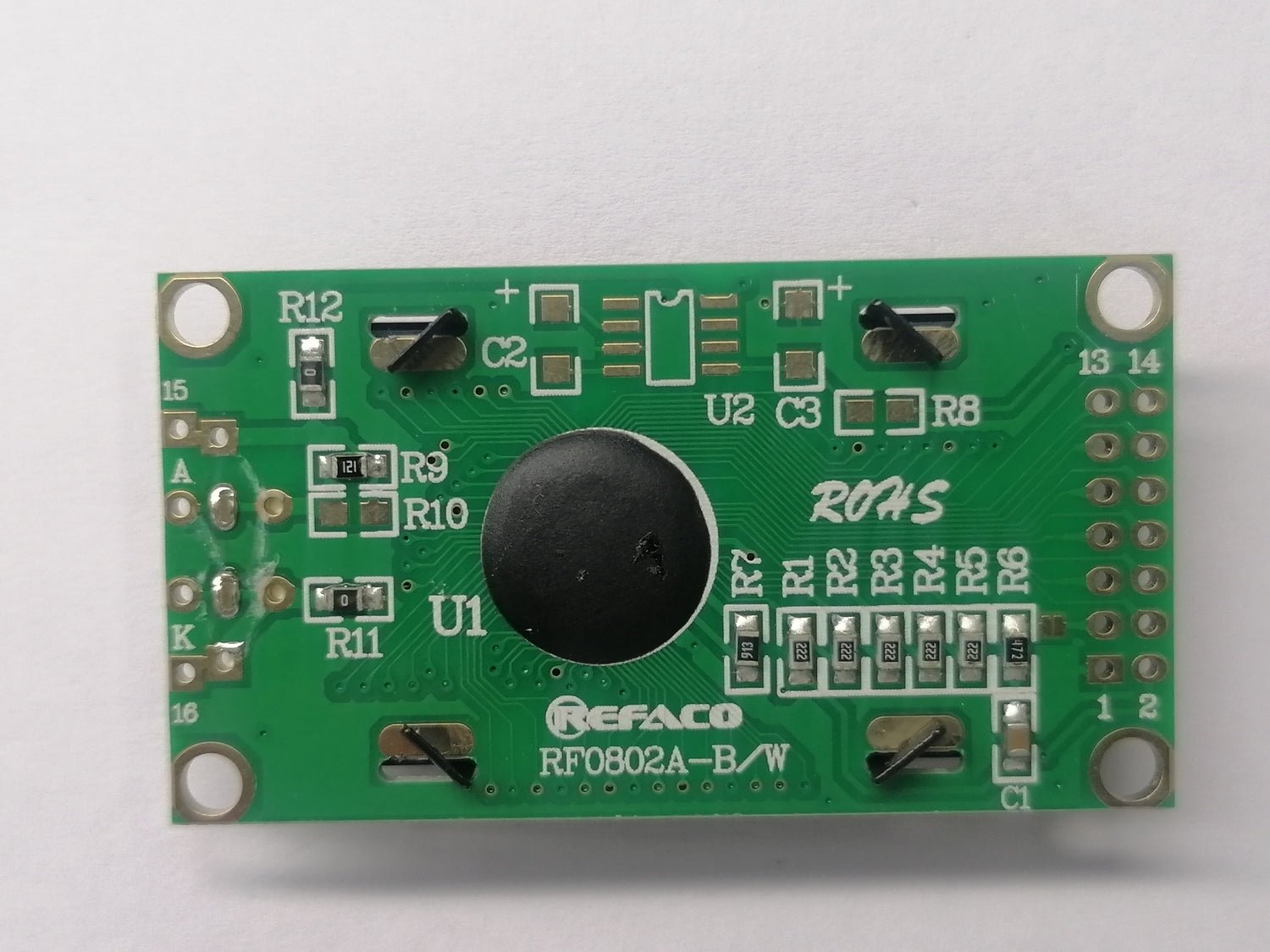

Specifications

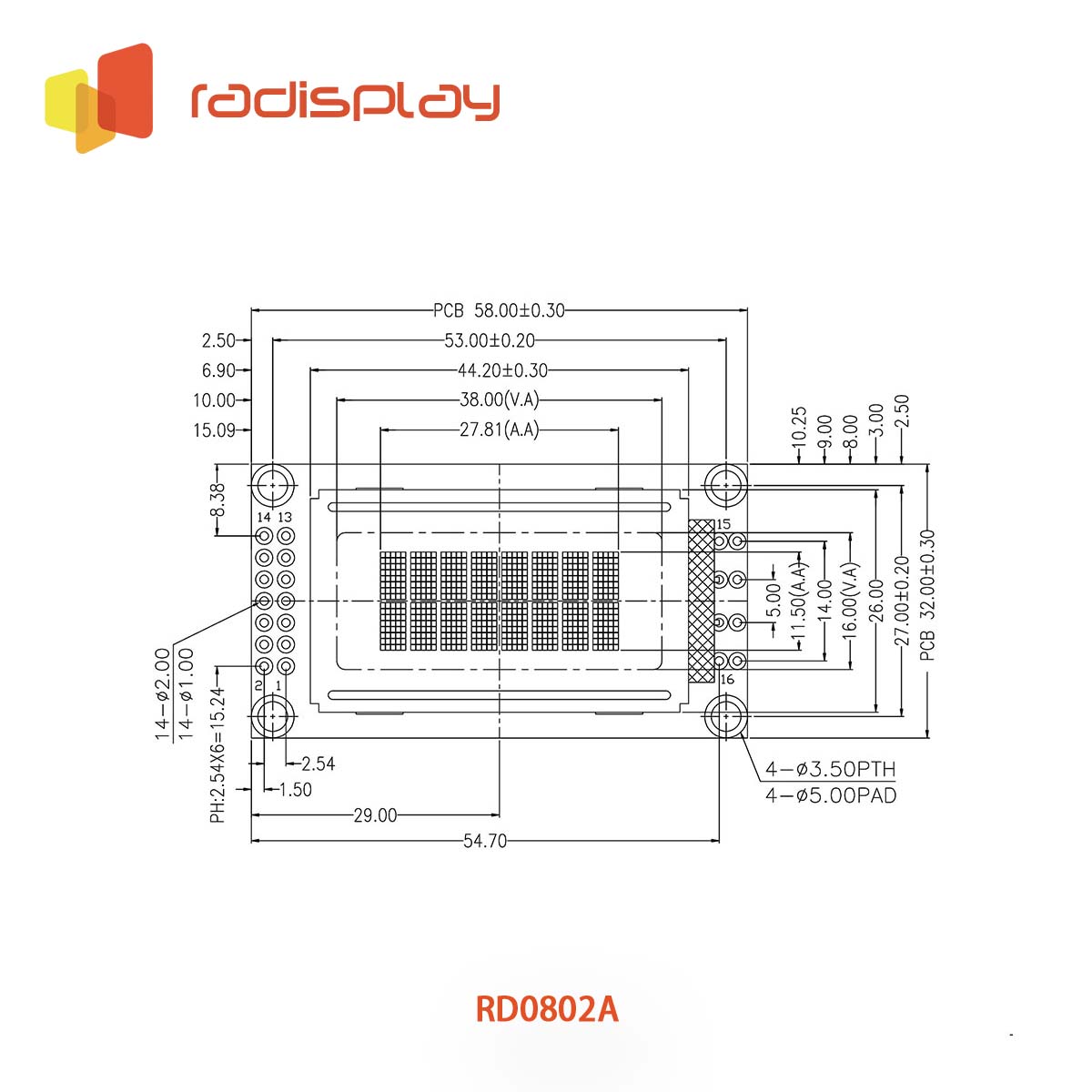

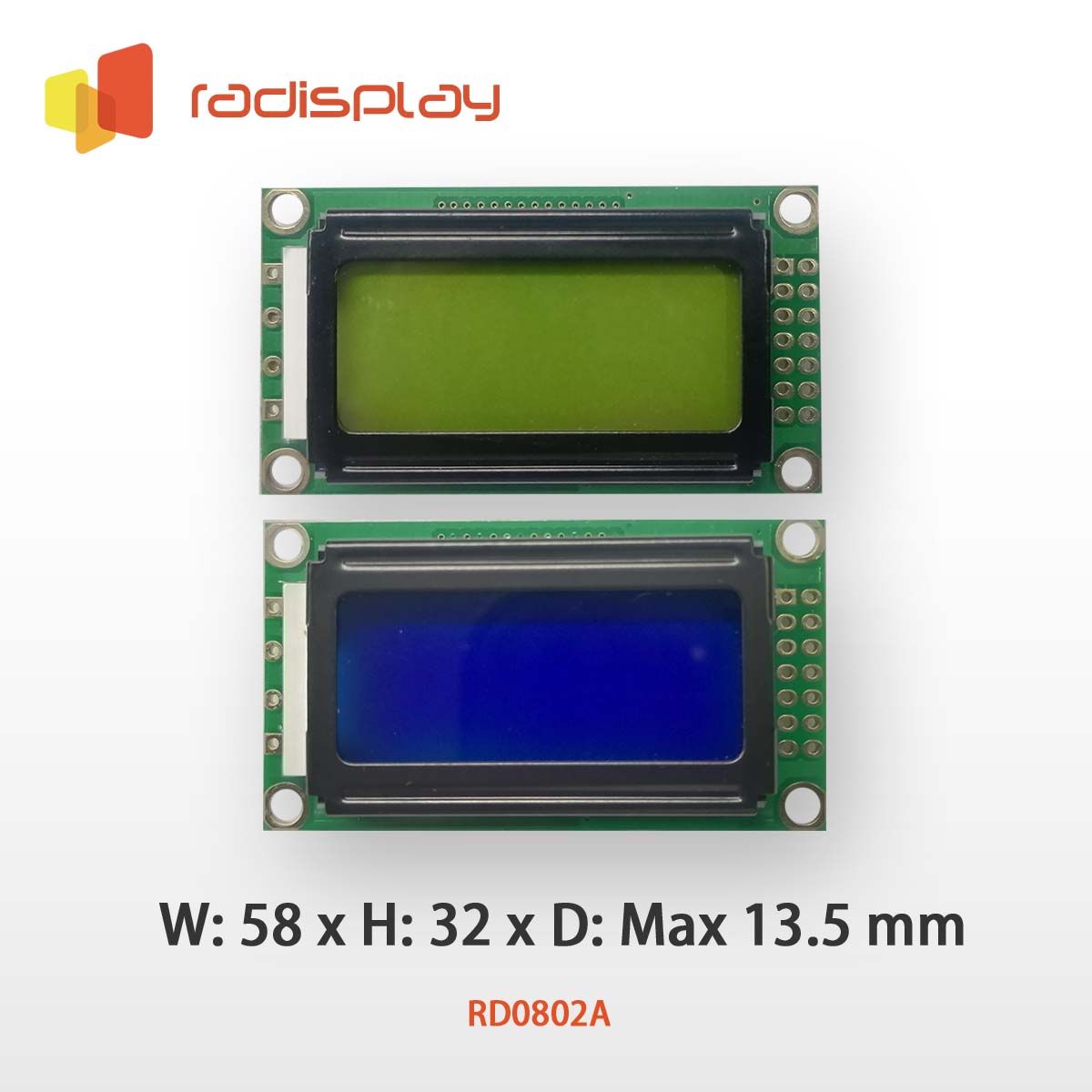

Module size(W x H x D) | 58 x 32 x Max 13.5 mm |
Viewing area(W x H) | 38 x 16 mm |
Character Size | 2.96 x 5.56 mm |
Dot Size | 0.56 x 0.66 mm |
Dot pitch (W x H) | 0.6 x 0.7 mm |
Interface | 8-bit Parallel interface |
Driver Condition | 1/16 Duty , 1/5 Bias |
Driver IC | AIP31066 |
Operating temperature | -20 - 70 ℃ |
