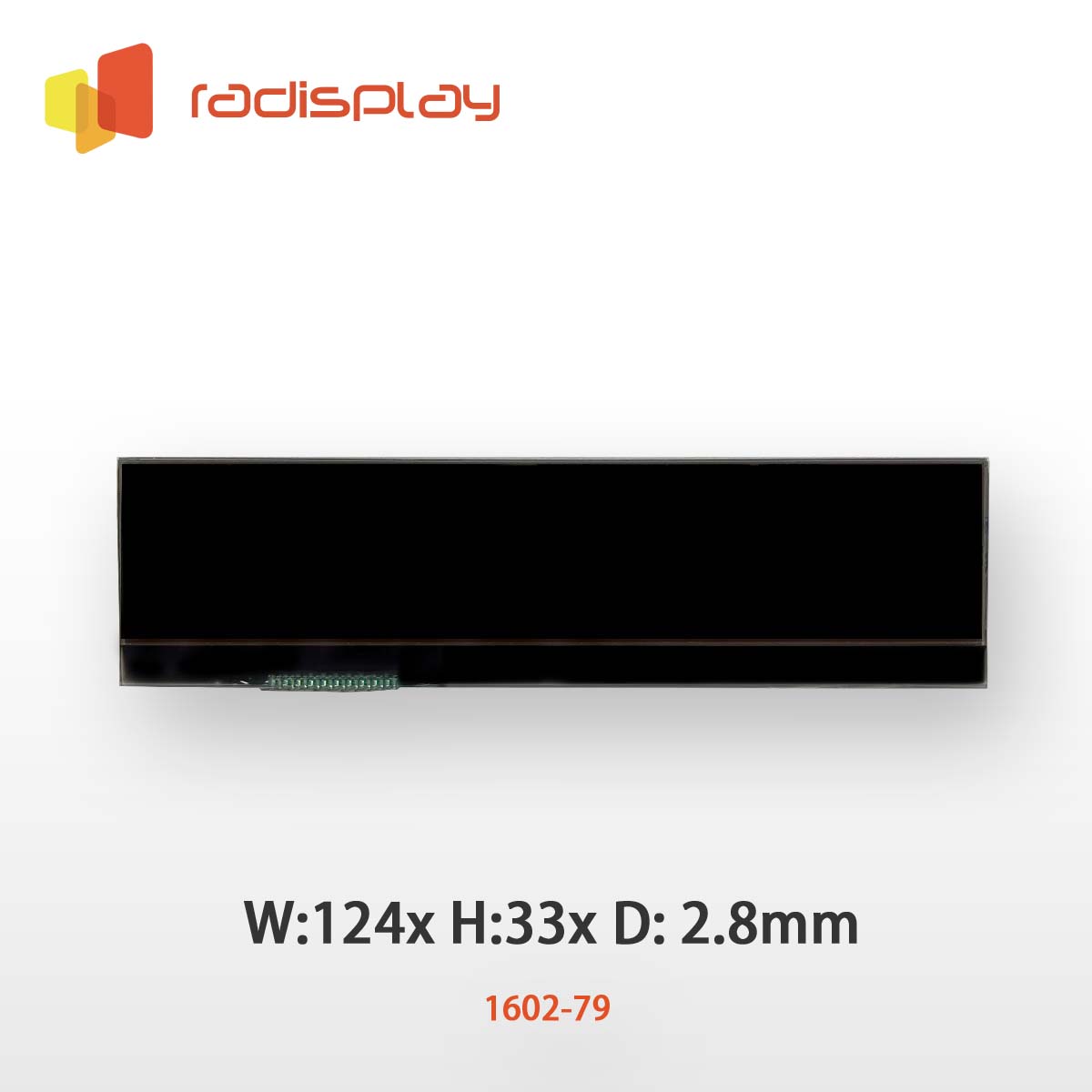

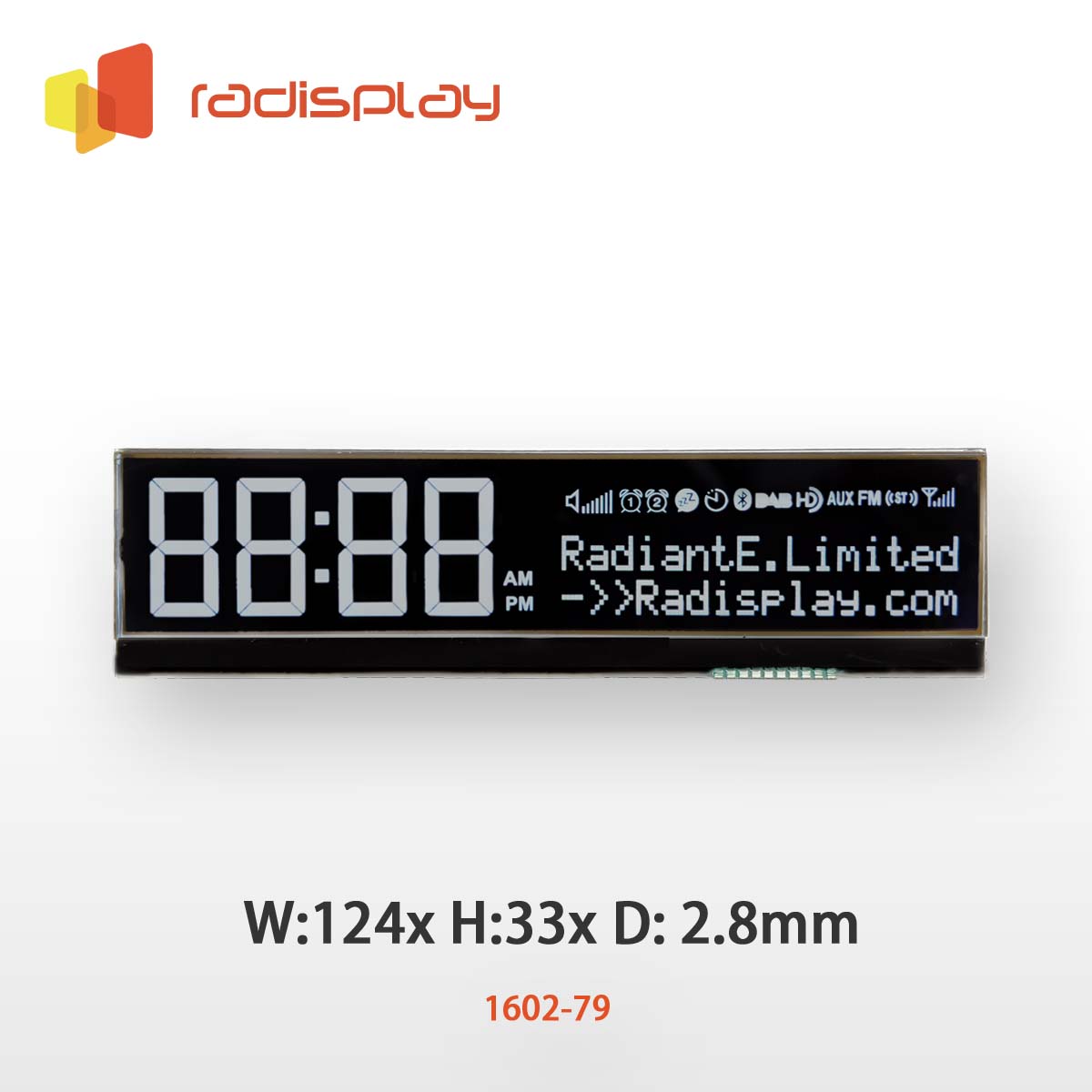

16x2 Character LCD (Chip on Glass) (RC1602-79)

RC1602-79 is a 16x2 Character LCD display with compact size & easy application .

A wide range of options are available for this model, including:

  • Different display color options including Black on yellow, Black on white, White on blue
  • Different Backlight colors options available including no backlight
  • Different Temperature (Including Extended high temperature)

In addition, a wide range of customized options are available including different backlight structures, different FPC shapes,

Specifications

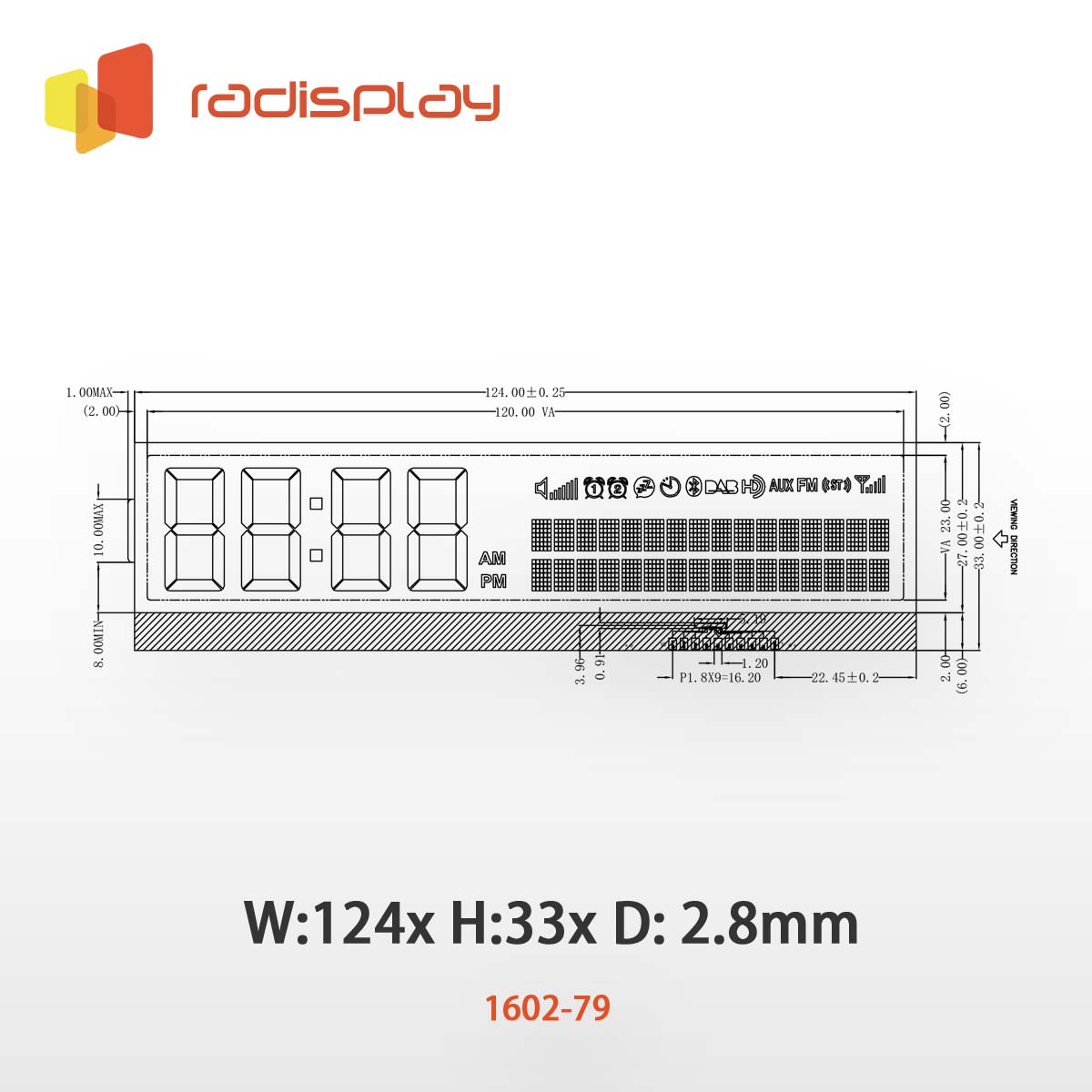

Module size(W x H x D) 124 x 33 x 2.8 mm
Viewing area(W x H) 120 x 23 mm
Character Size
Dot Size 0.58 x 0.68 mm
Dot pitch (W x H) 0.61 x 0.71 mm
Interface 4 wire SPI Serial interface
Driver Condition 1/17 Duty , 1/5 Bias
Driver IC ST7036i
Operating temperature -0 - 50 ℃
