Radiant Electronics Limited

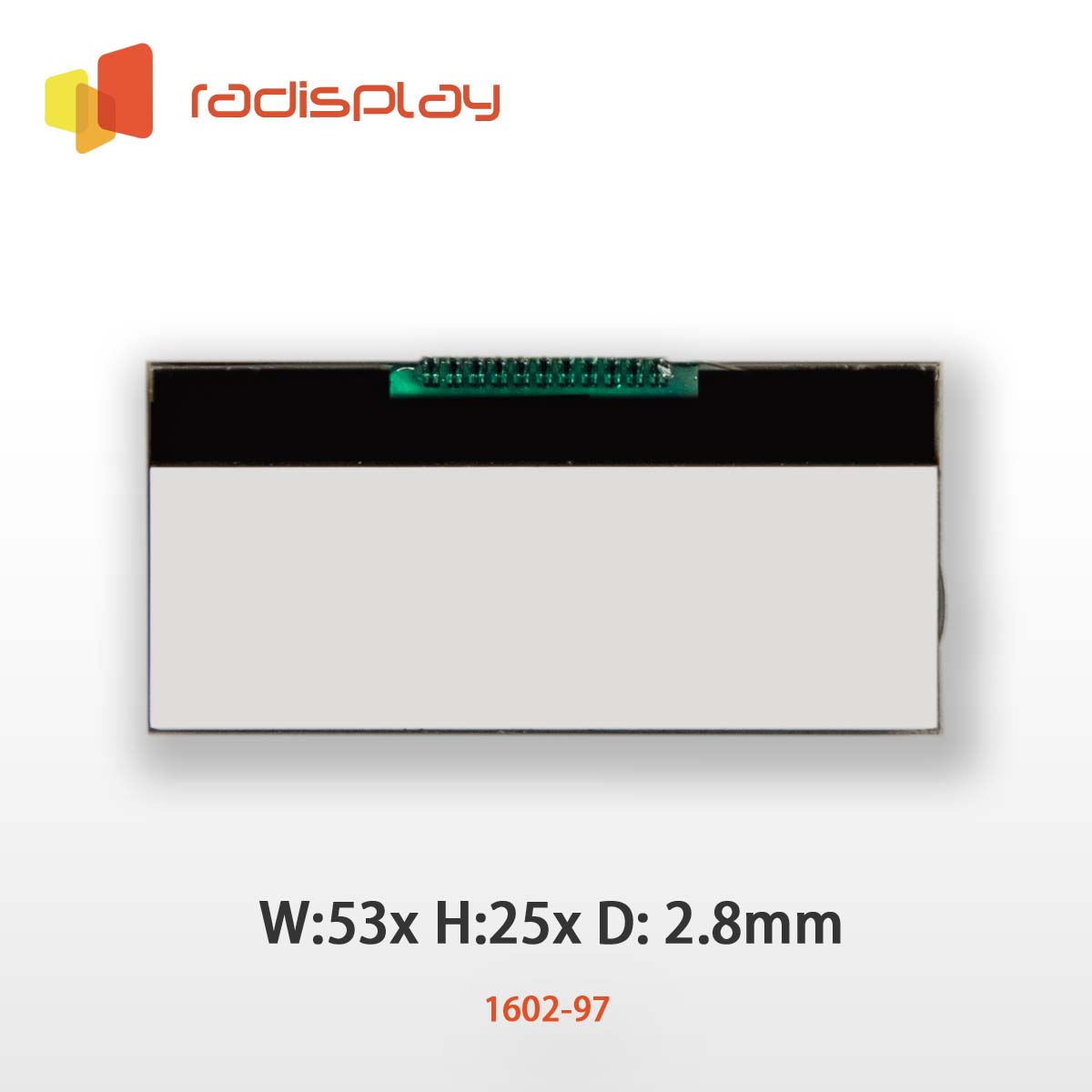

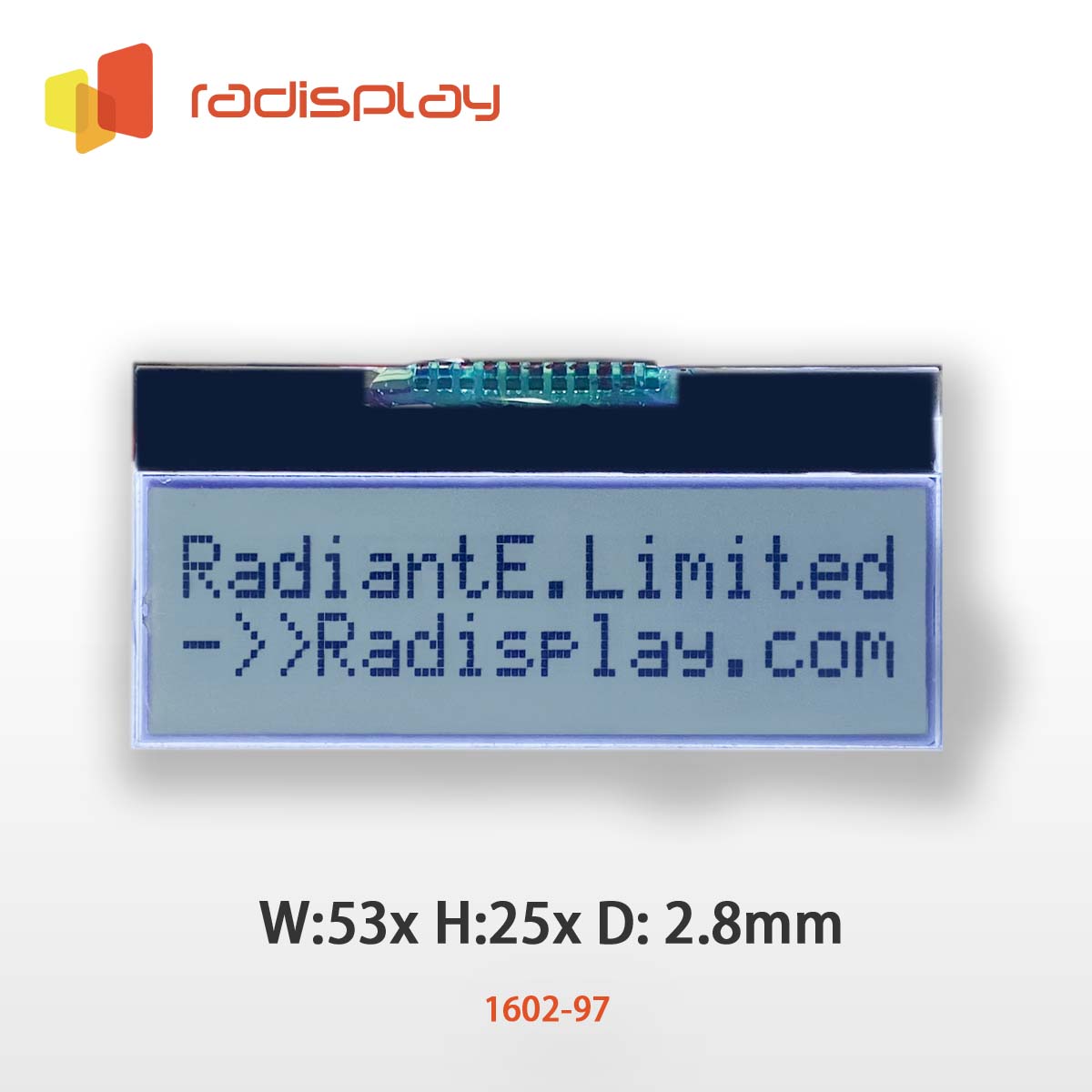

16x2 Character LCD (Chip on Glass) (RC1602-97)

RC1602-97 is a 16x2 Character LCD display with compact size & easy application .

A wide range of options are available for this model, including:

  • Different display color options including Black on yellow, Black on white, White on blue
  • Different Backlight colors options available including no backlight
  • Different Temperature (Including Extended high temperature)

In addition, a wide range of customized options are available including different backlight structures, different FPC shapes,

Specifications

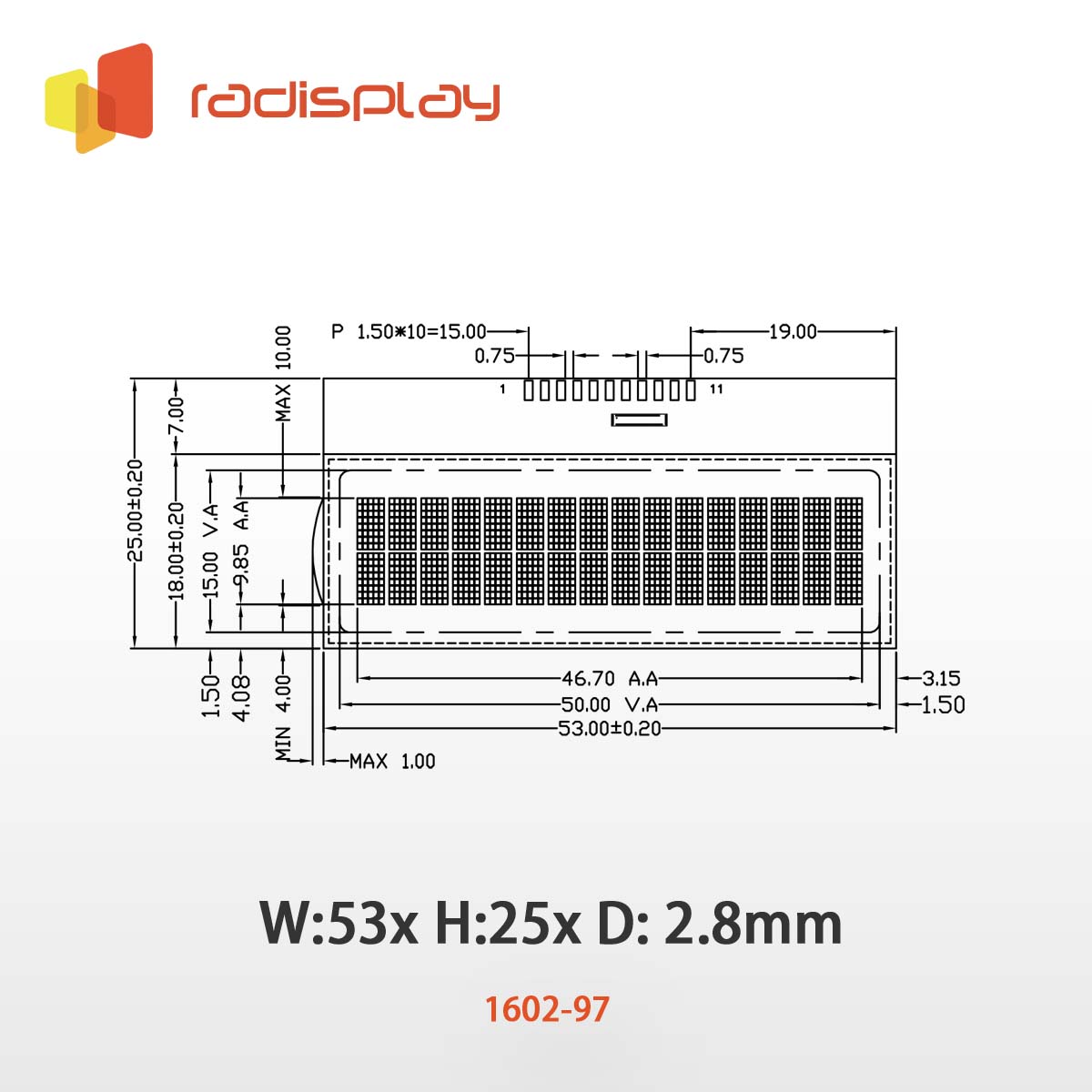

Module size(W x H x D) 53 x 25 x 2.8 mm
Viewing area(W x H) 50 x 15 mm
Character Size
Dot Size 0.45 x 0.55 mm
Dot pitch (W x H) 0.50 x 0.60 mm
Interface I2C Serial Interface
Driver Condition 1/17 Duty , 1/5 Bias
Driver IC ST7032i
Operating temperature -10 - 50 ℃

Datasheet
