Radiant Electronics Limited

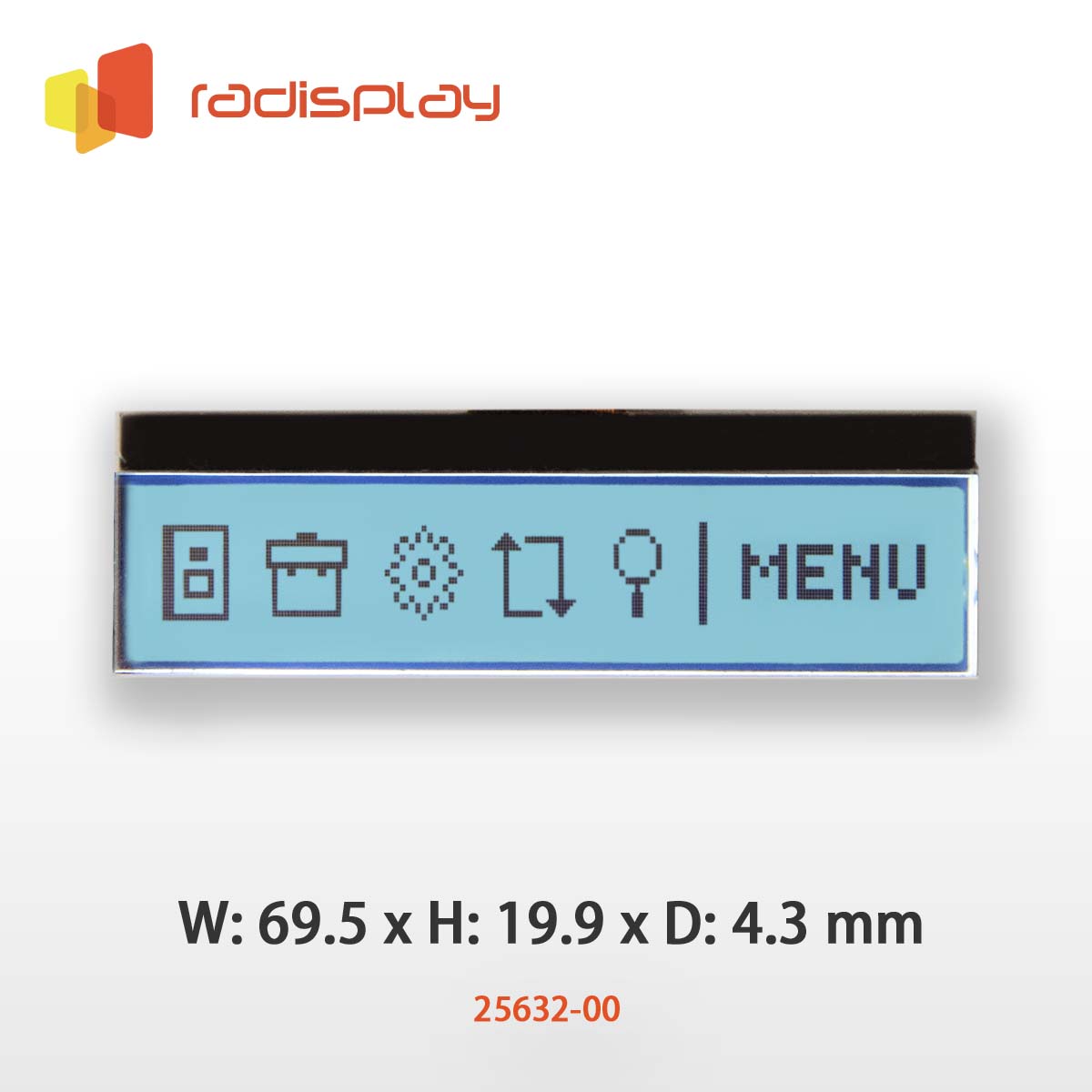

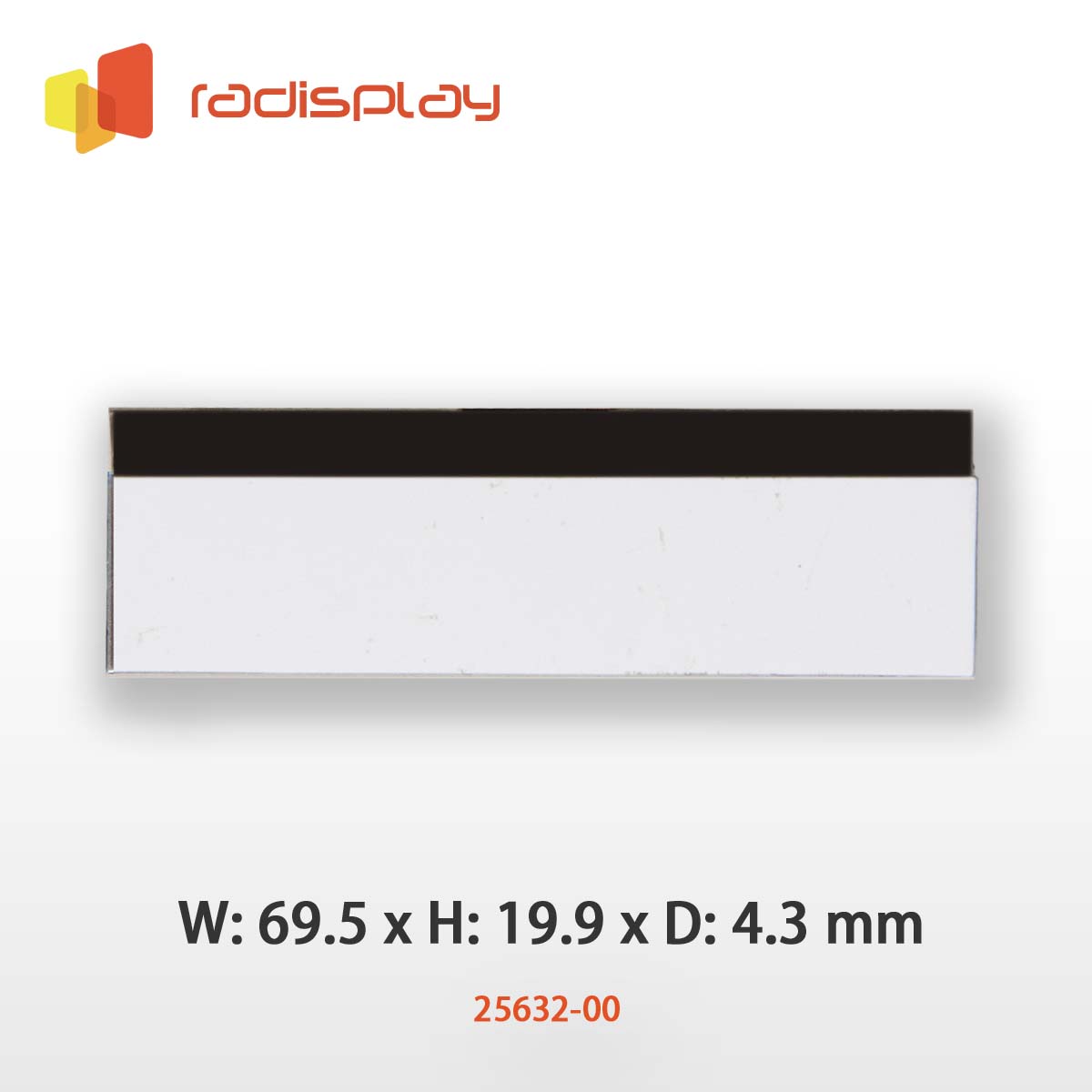

256x32 Graphic LCD (Chip on Glass) (RC25632-00)

RC25632-00 is a 256x32 Graphic LCD display with compact size & easy application .

A wide range of options are available for this model, including:

  • Different display color options including Black on yellow, Black on white, White on blue
  • Different Backlight colors options available including no backlight
  • Different Temperature (Including Extended high temperature)

In addition, a wide range of customized options are available including different backlight structures, different FPC shapes,

Specifications

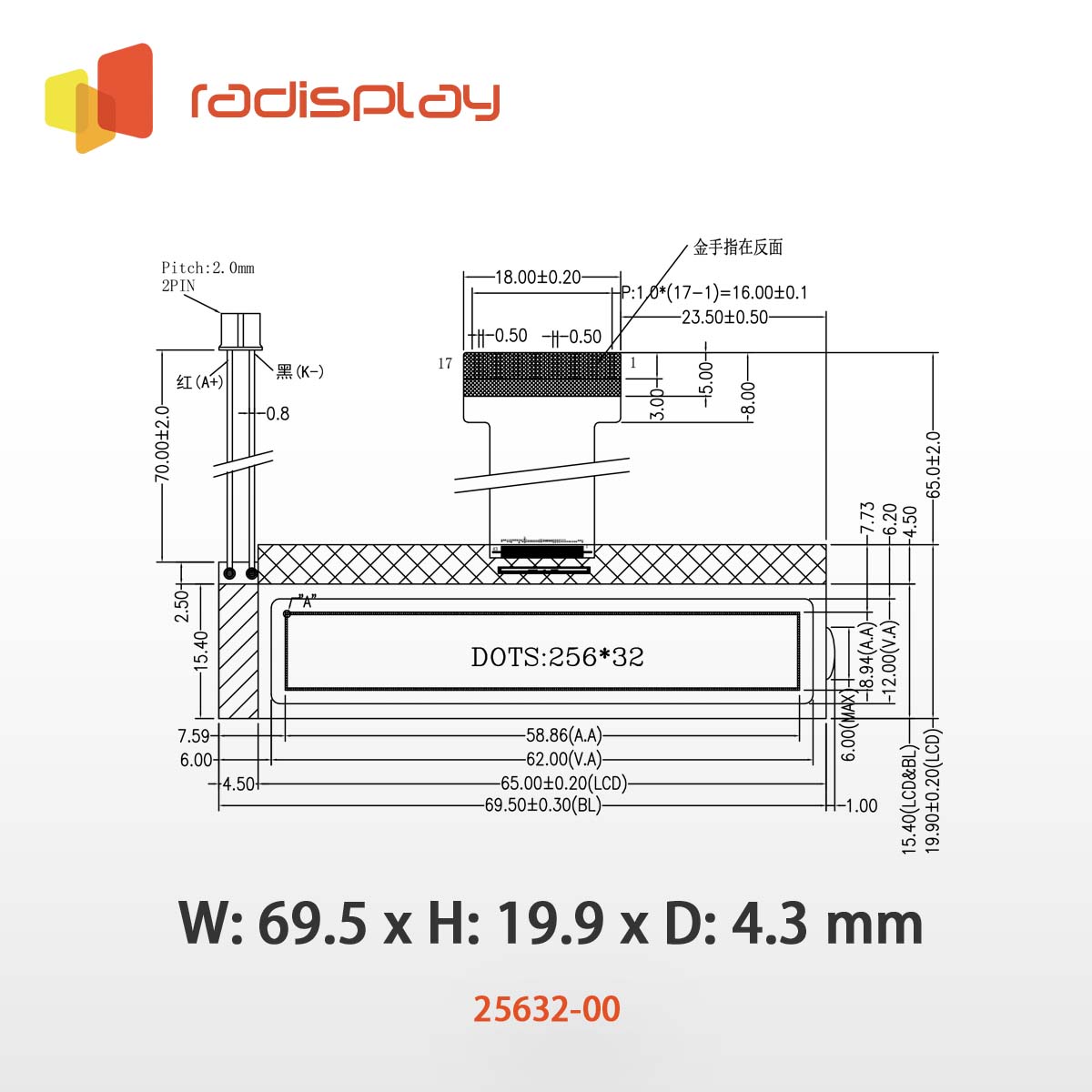

Module size(W x H x D) 69.5 x 19.9 x 4.3 mm
Viewing area(W x H) 62.0 x 12.0 mm
Character Size
Dot Size 0.21 x 0.26 mm
Dot pitch (W x H) 0.23 x 0.28 mm
Interface 4 wire SPI Serial Interface
Driver Condition 1/162 Duty , 1/12 Bias
Driver IC ST75256
Operating temperature -20 - 60 ℃

Datasheet
