Radiant Electronics Limited

16x2 VATN Character LCD Display Module

RD1602A VATN  Alphanumeric Character LCD offers black background with high contrast for 16x2 display. With different backlight options, RD1602A-8-VA is your perfect choice for upgrade for your exiting 16x2 Character display.

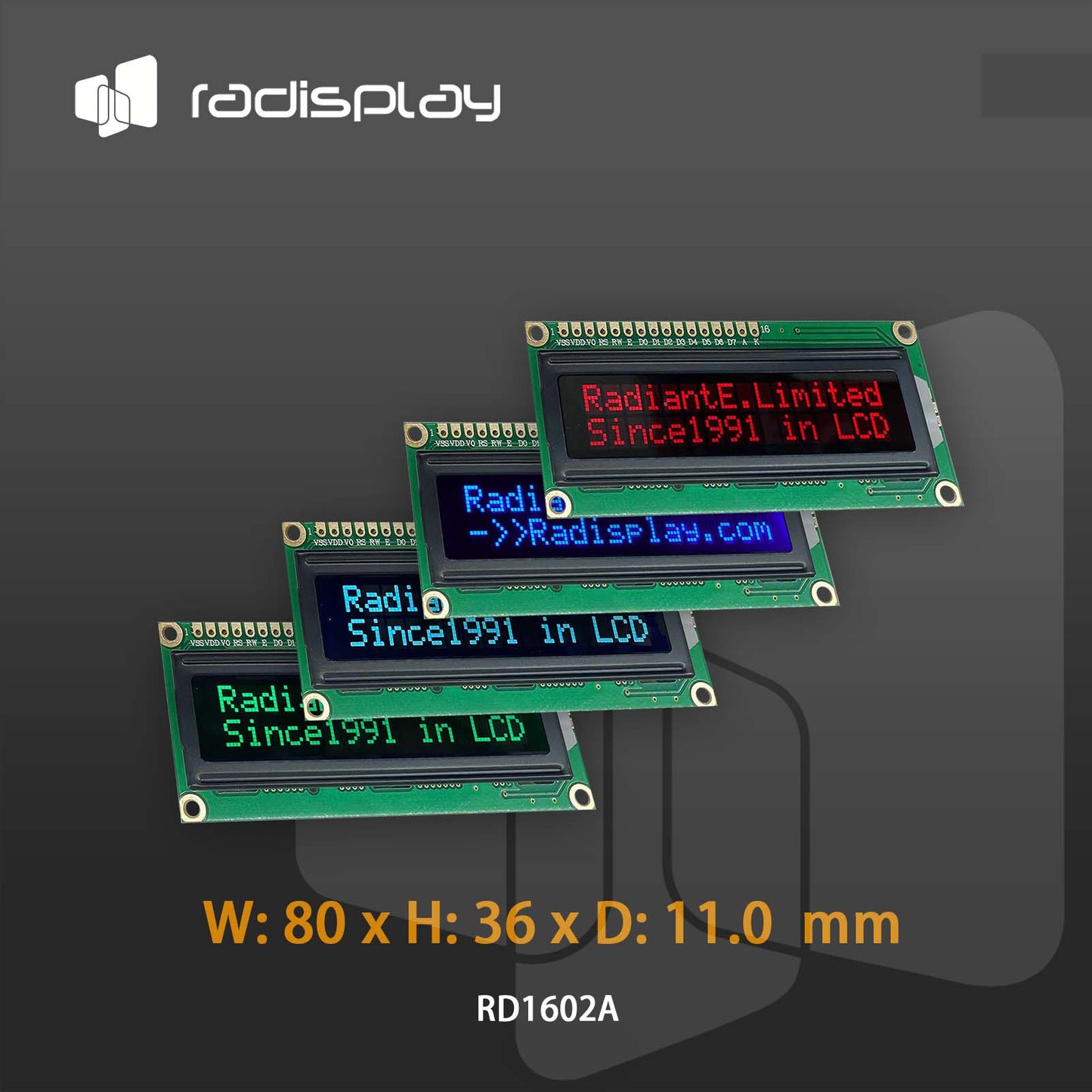

The following color options are available:

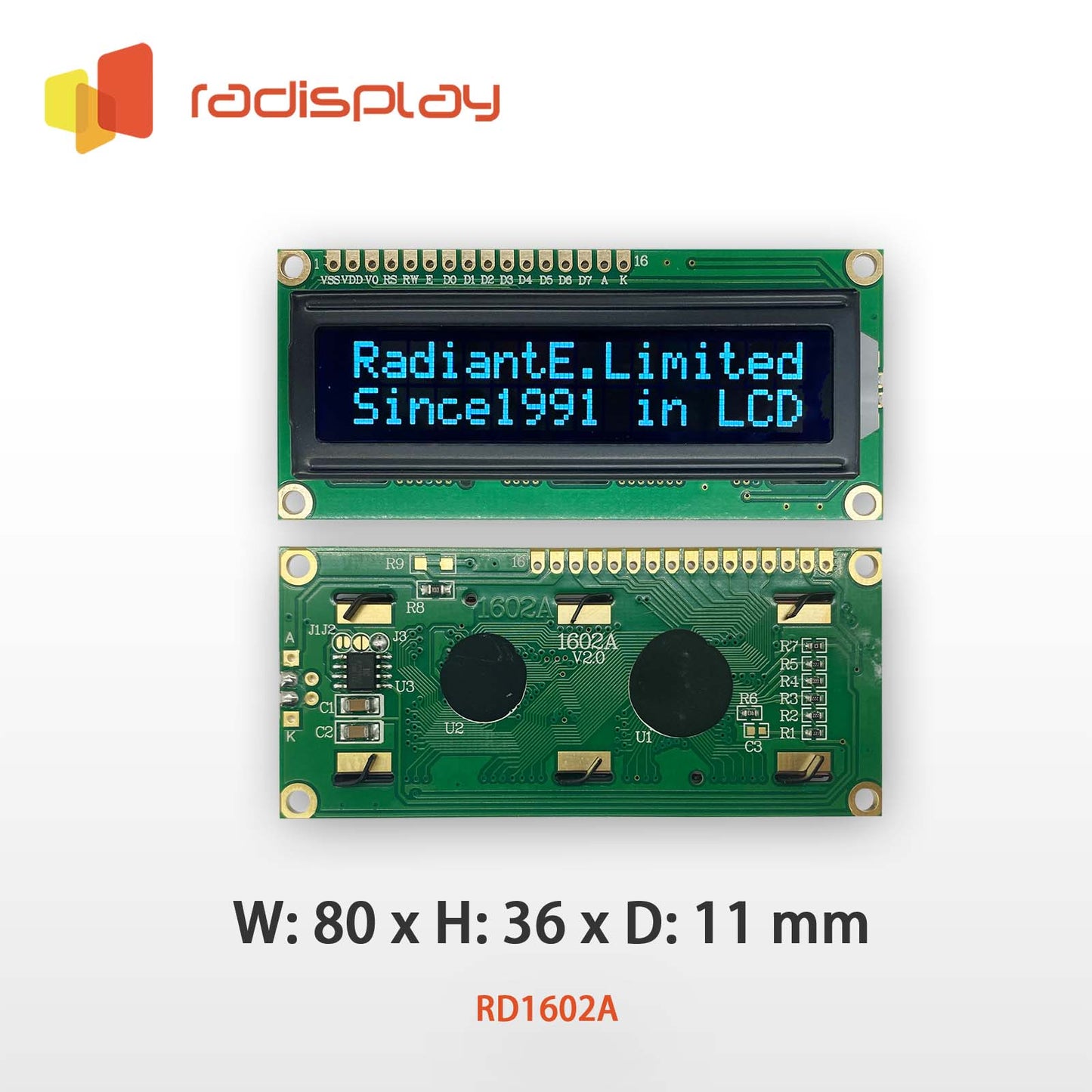

  • RD1602A-8-VA-01 White on Black

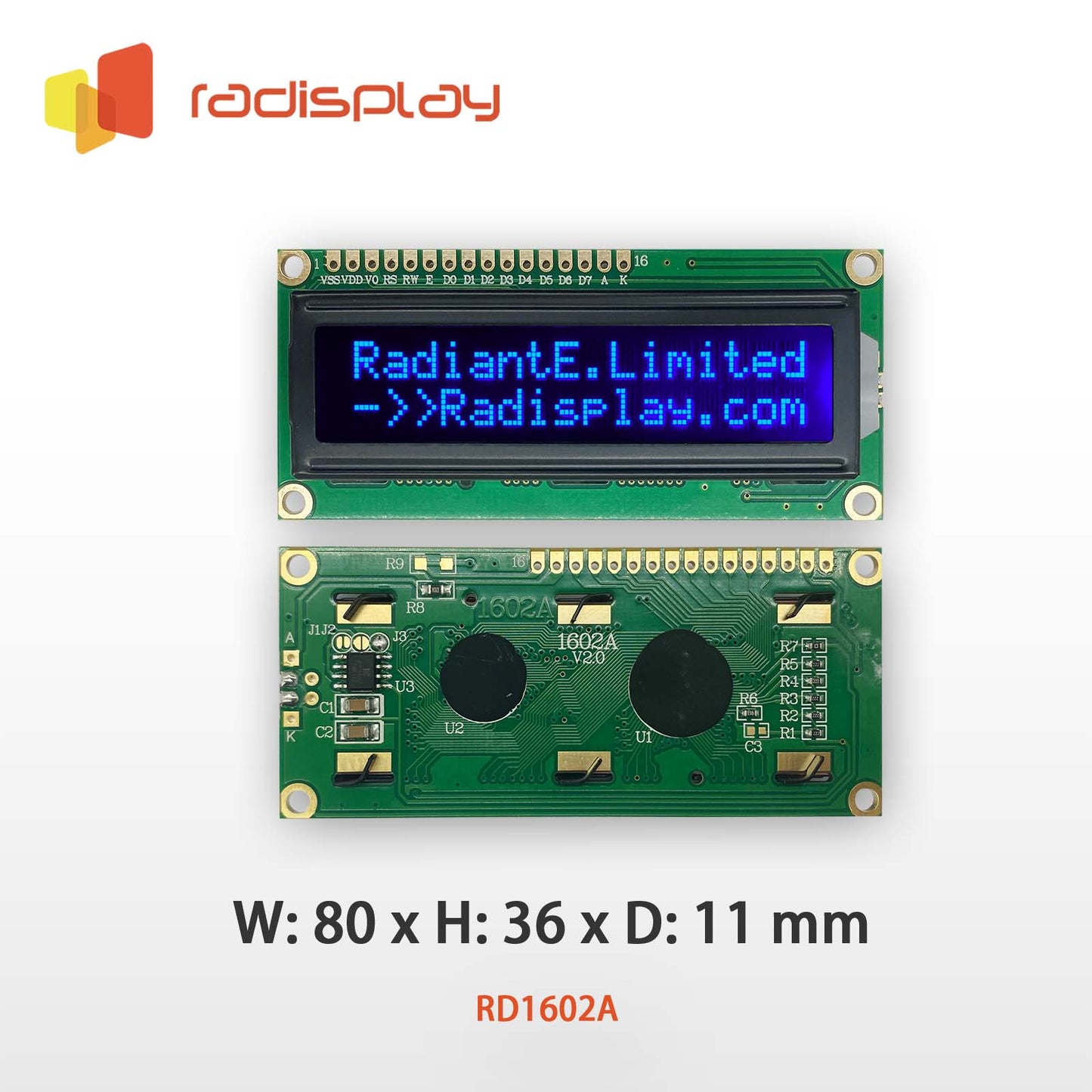

  • RD1602A-8-VA-02 Blue on Black
  • RD1602A-8-VA-03 Green on Black

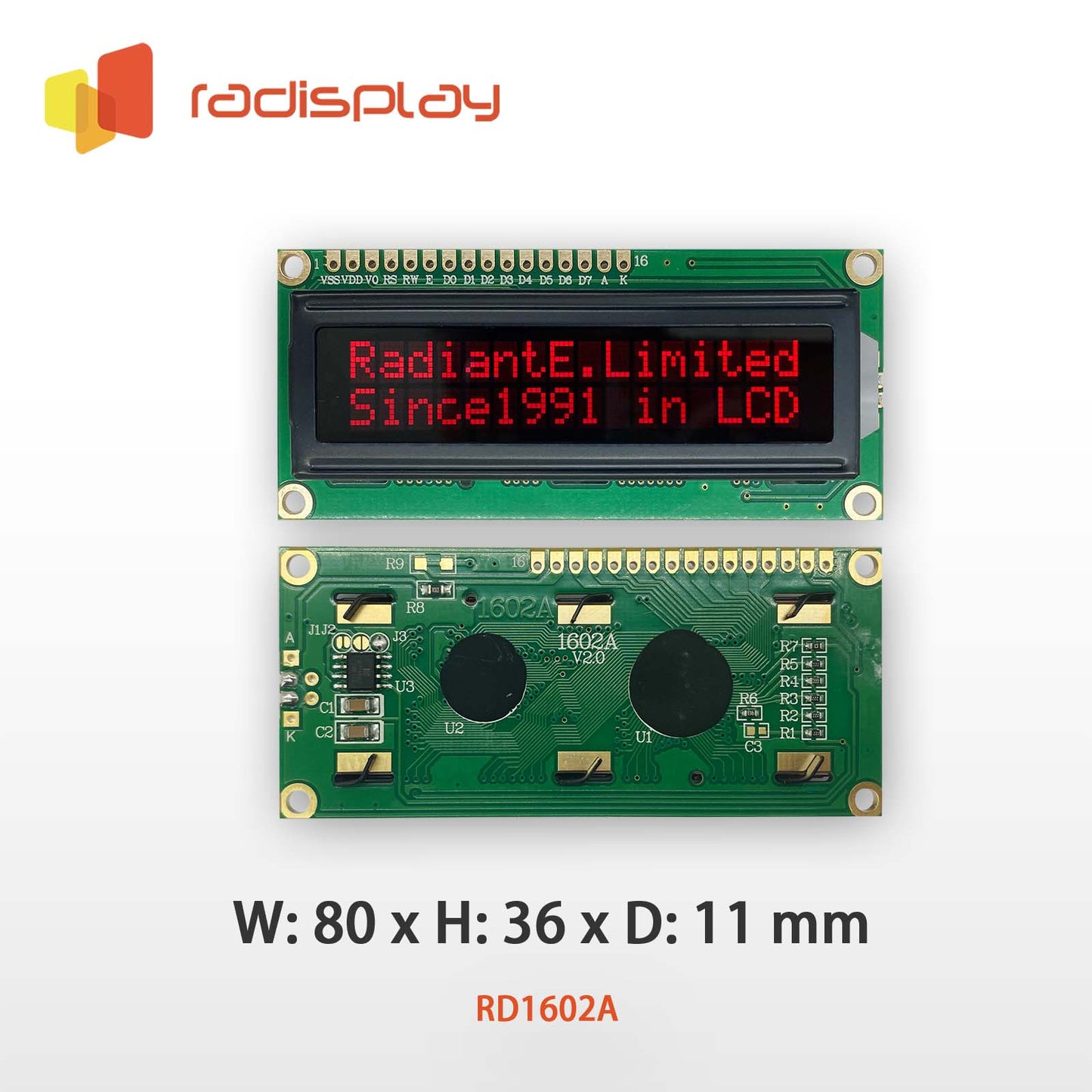

  • RD1602A-8-VA-04 Red on Black
  • RD1602A-8-VA-05 Amber on Black


In addition, a wide range of options are available for this model, including:

  • Different Backlight
  • Different Voltage (3.3V, 5.0V and other customized voltage)
  • Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

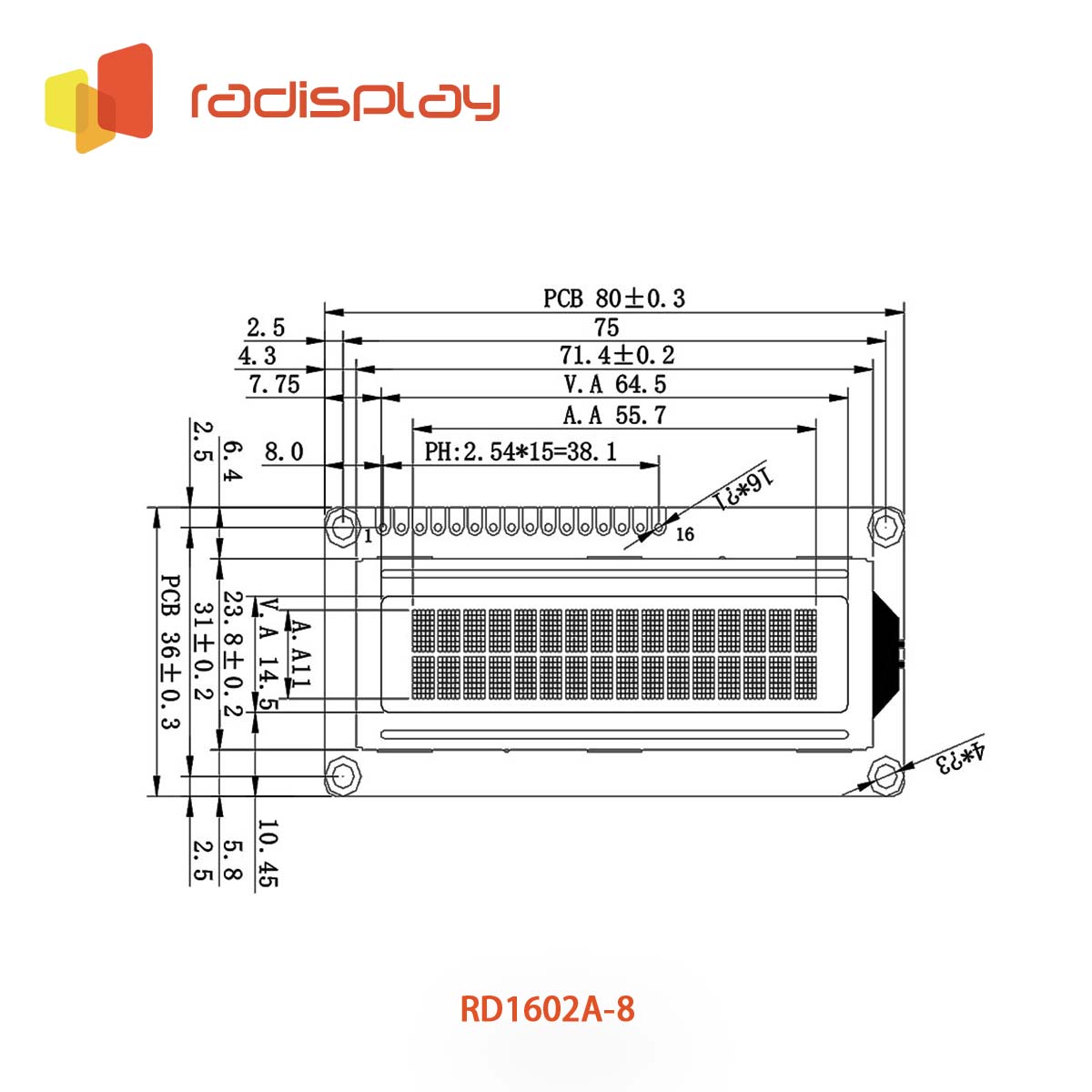

Module size(W x H x D) 80 x 36 x 11.0 mm
Viewing area(W x H) 64.5 x 14.5 mm
Character Size 2.9 x 5.15 mm
Dot Size 0.54 x 0.60 mm
Dot pitch (W x H) 0.59 x 0.65 mm
Interface 8-bit Parallel interface
Driver Condition 1/16 Duty , 1/5 Bias
Driver IC AIP31066
Operating temperature -20 - 70 ℃
