Radiant Electronics Limited

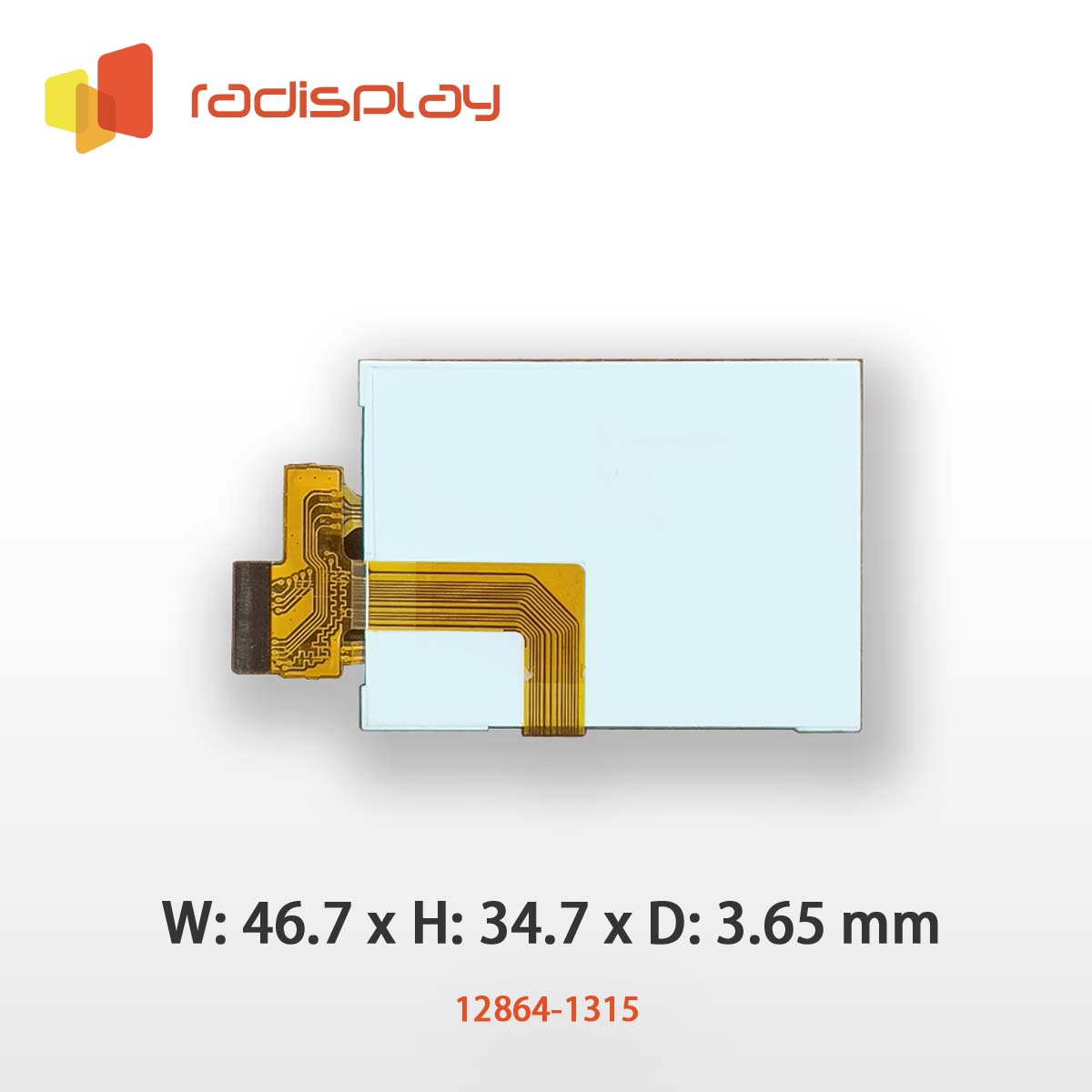

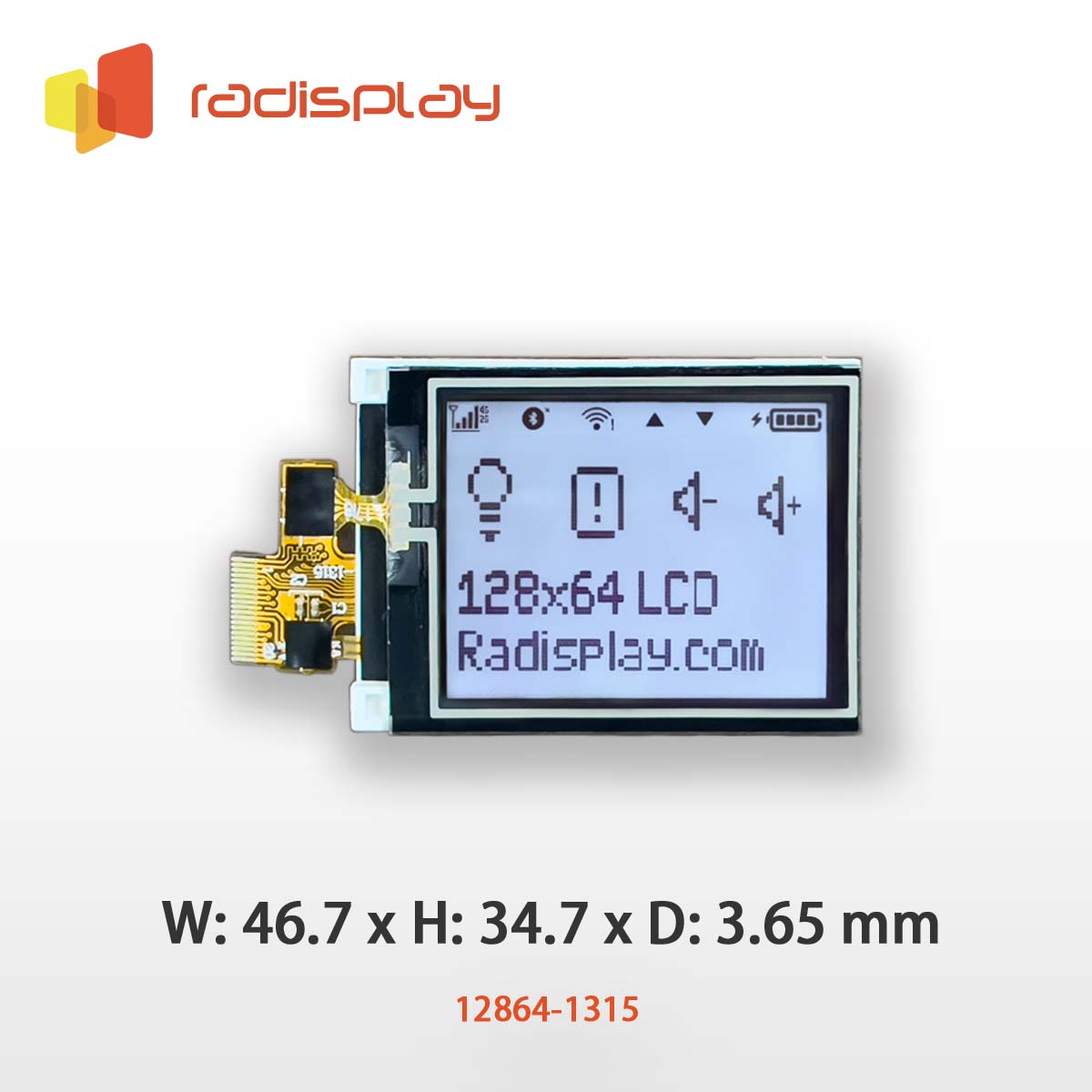

128x64 Graphic LCD (Chip on Glass with Touch Panel) (RC12864-1315)

RC12864-1315 is a 128x64 Graphic LCD display with compact size & easy application . A wide range of options are available for this model, including:

  • Different display color options including Black on yellow, Black on white, White on blue
  • Different Backlight colors options available including no backlight
  • Different Temperature (Including Extended high temperature)

In addition, a wide range of customized options are available including different backlight structures, different FPC shapes,

Specifications

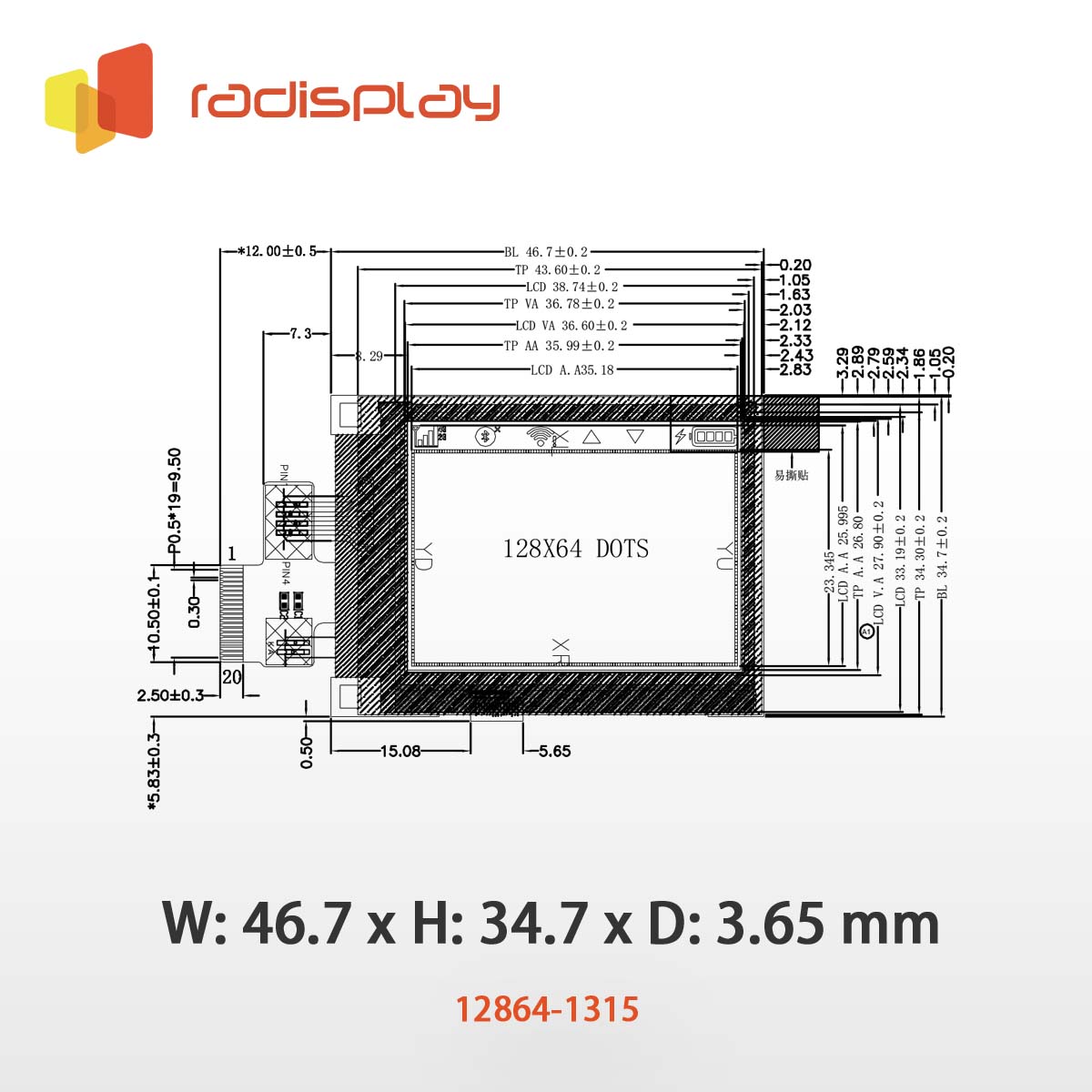

Module size(W x H x D) 46.70 x 34.70 x 3.65 mm
Viewing area(W x H) 36.60 x 27.90 mm
Character Size
Dot Size 0.26 x 0.35 mm
Dot pitch (W x H) 0.275 x 0.365 mm
Interface 4 wire SPI Serial Interface
Driver Condition 1/65 Duty , 1/9 Bias
Driver IC ST7567A
Operating temperature 0 - 50 ℃

Datasheet
