Radiant Electronics Limited
128x64 Dot matrix Graphic LCD (RD12864I )
RD12864I is widely used among 128x64 Graphic LCD displays.
The following color options are most widely ordered:

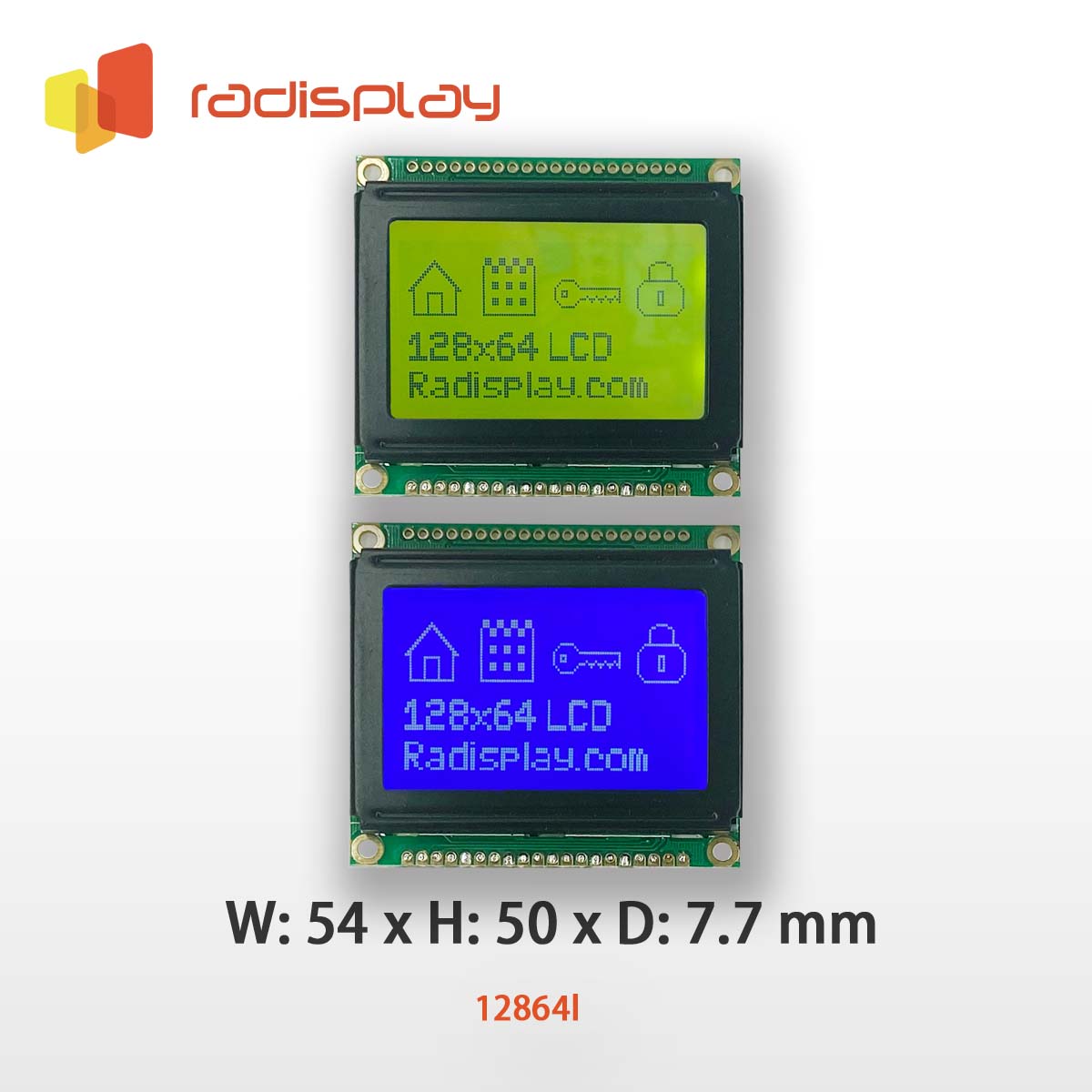

- RD12864I-B White on Blue
- RD12864I-Y Black on Yellow-Green
- RD12864I-G Black on Gray
In addition, a wide range of options are available for this model, including:
- Different Backlight
- Different Voltage (3.3V, 5.0V and other customized voltage)
- Different Interface (Including Serial SPI, I2C interface)
- Different Temperature (Including Extended high temperature)
Specifications

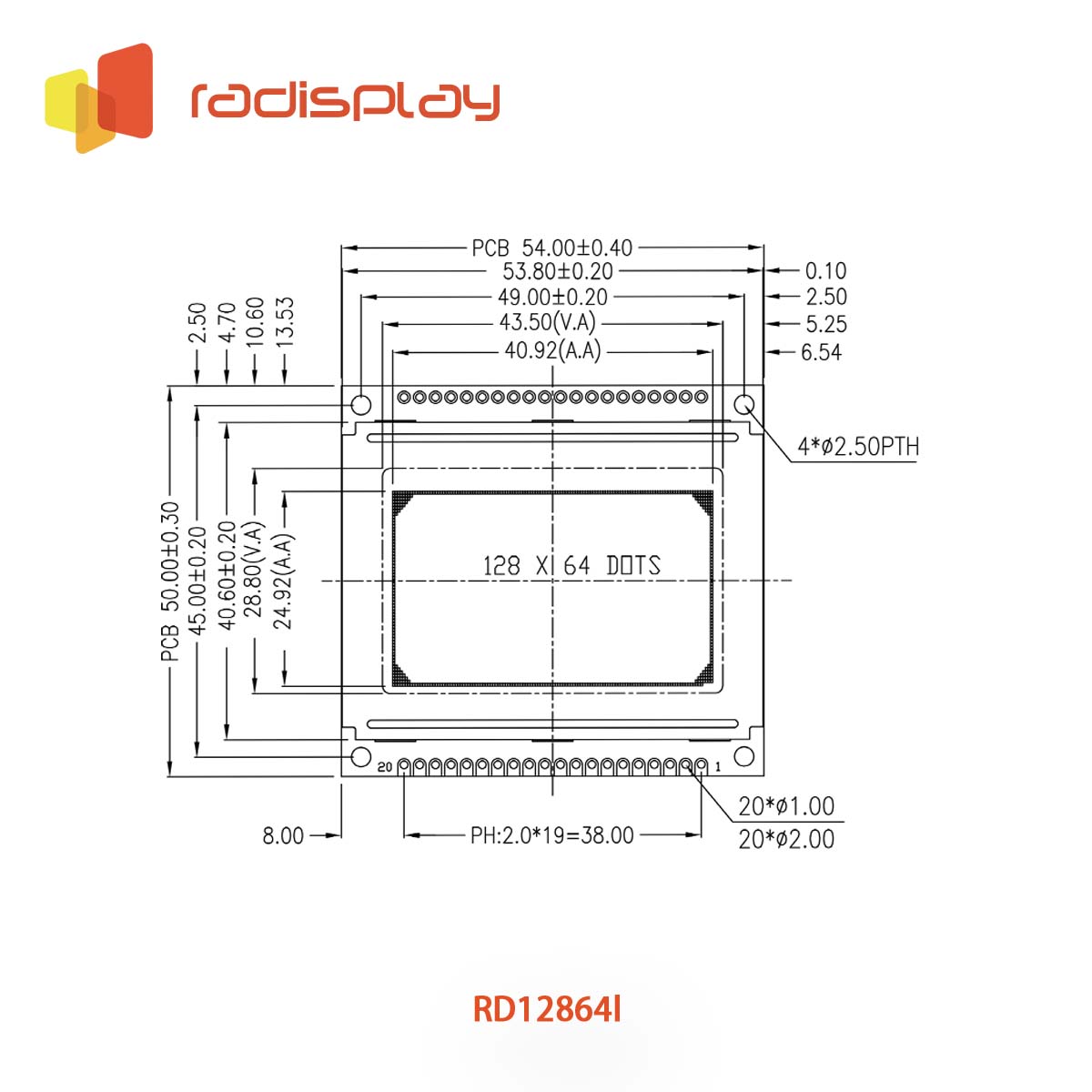

| Module size（W x H x D） | 54 x 50 x 7.7 mm |
| Viewing area（W x H) | 43.5 x 28.8 mm |
| Character Size | |
| Dot Size | 0.28 x 0.35 mm |
| Dot pitch (W x H) | 0.32 x 0.39 mm |
| Interface | 8-bit Parallel interface |
| Driver Condition | 1/64 Duty , 1/9 Bias |

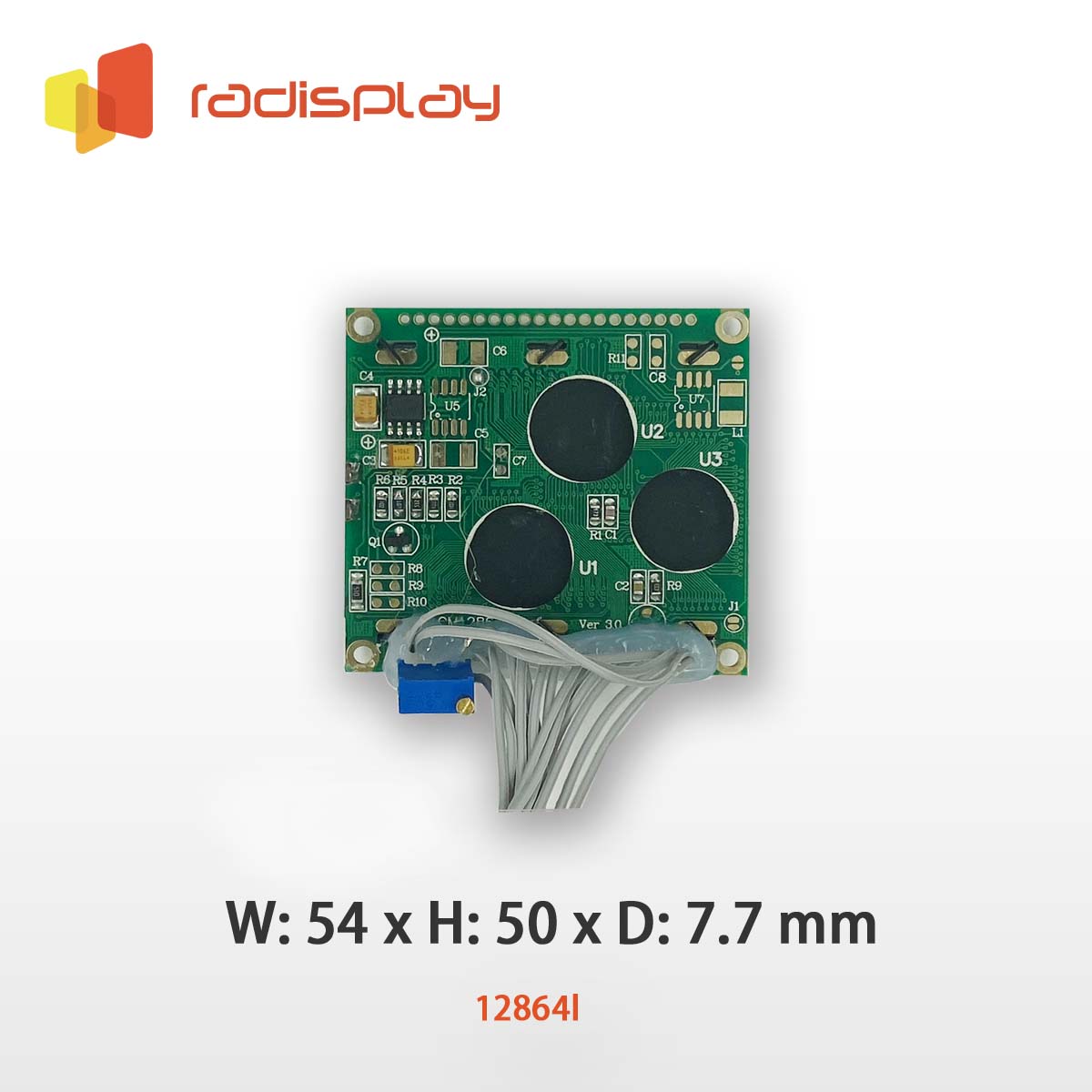

| Driver IC | 0107, 0108 |
| Operating temperature | -20 - 70 ℃ |
