Radiant Electronics Limited

128x64 Dot matrix Graphic LCD (RD12864M-3 )

RD12864M-3 is widely used among 128x64 Graphic LCD displays.

The following color options are most widely ordered:

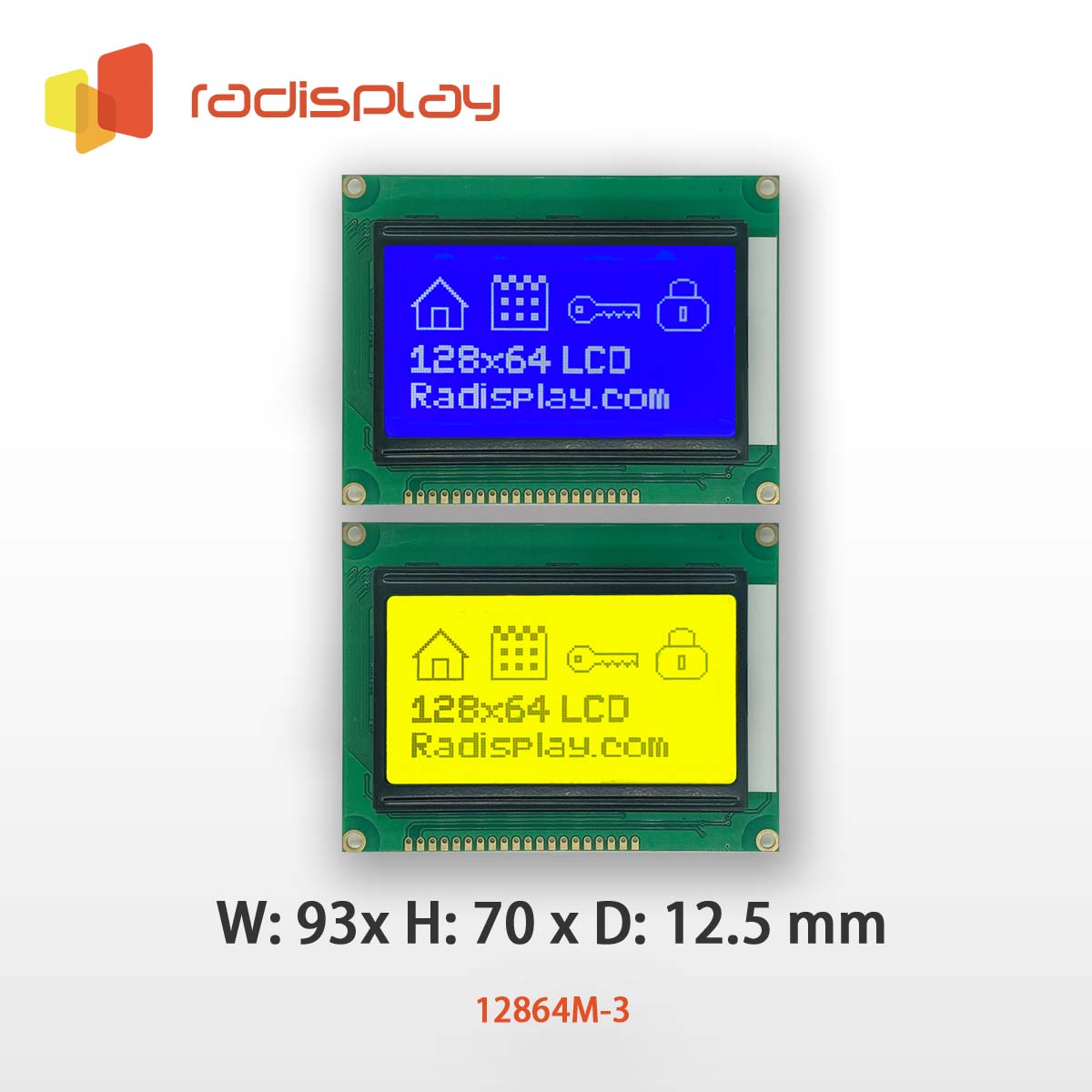

  • RD12864M-3-B White on Blue
  • RD12864M-3-Y Black on Yellow-Green
  • RD12864M-3-G Black on Gray

In addition, a wide range of options are available for this model, including:

  • Different Backlight
  • Different Voltage (3.3V, 5.0V and other customized voltage)
  • Different Interface (Including Serial SPI, I2C interface)
  • Different Temperature (Including Extended high temperature)

Specifications

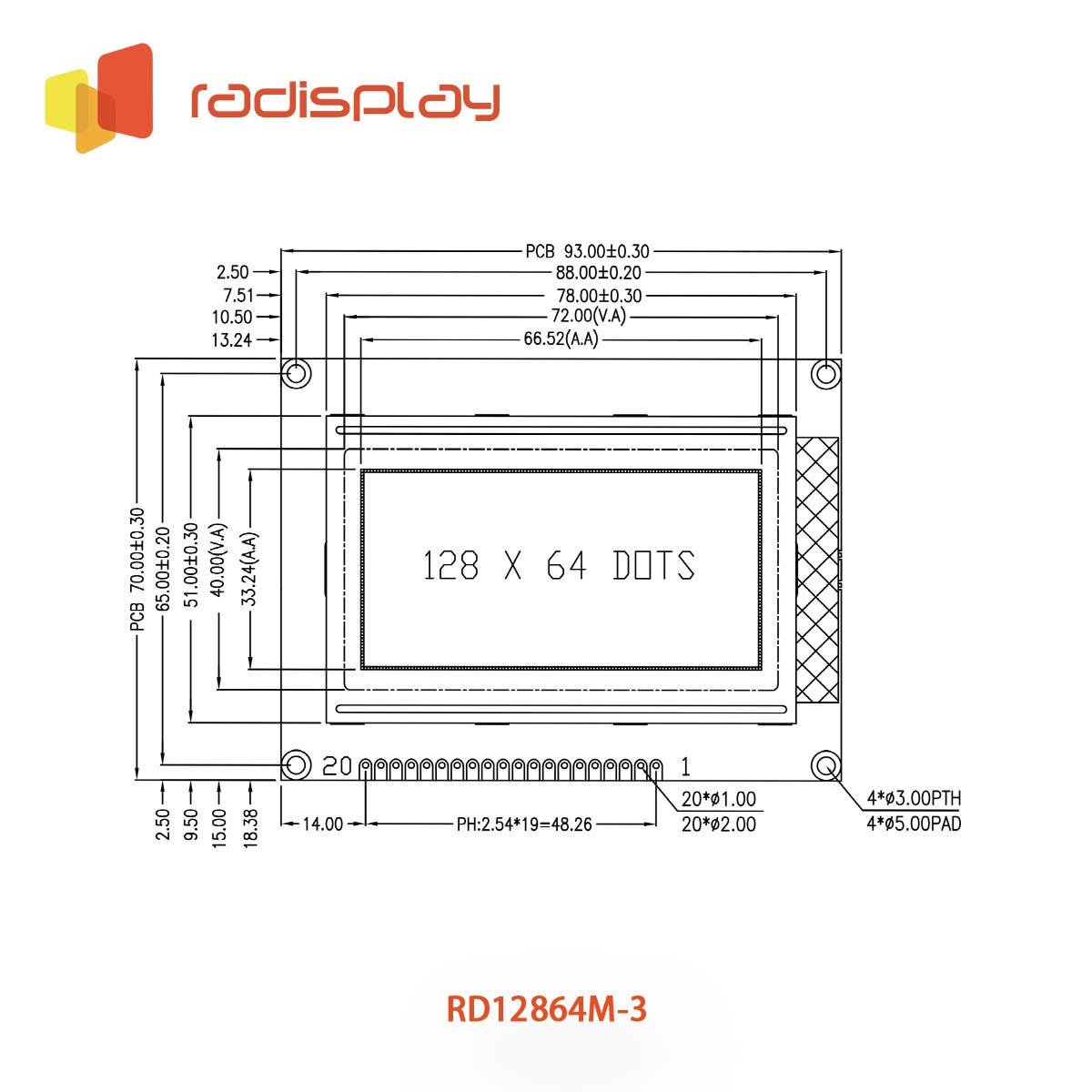

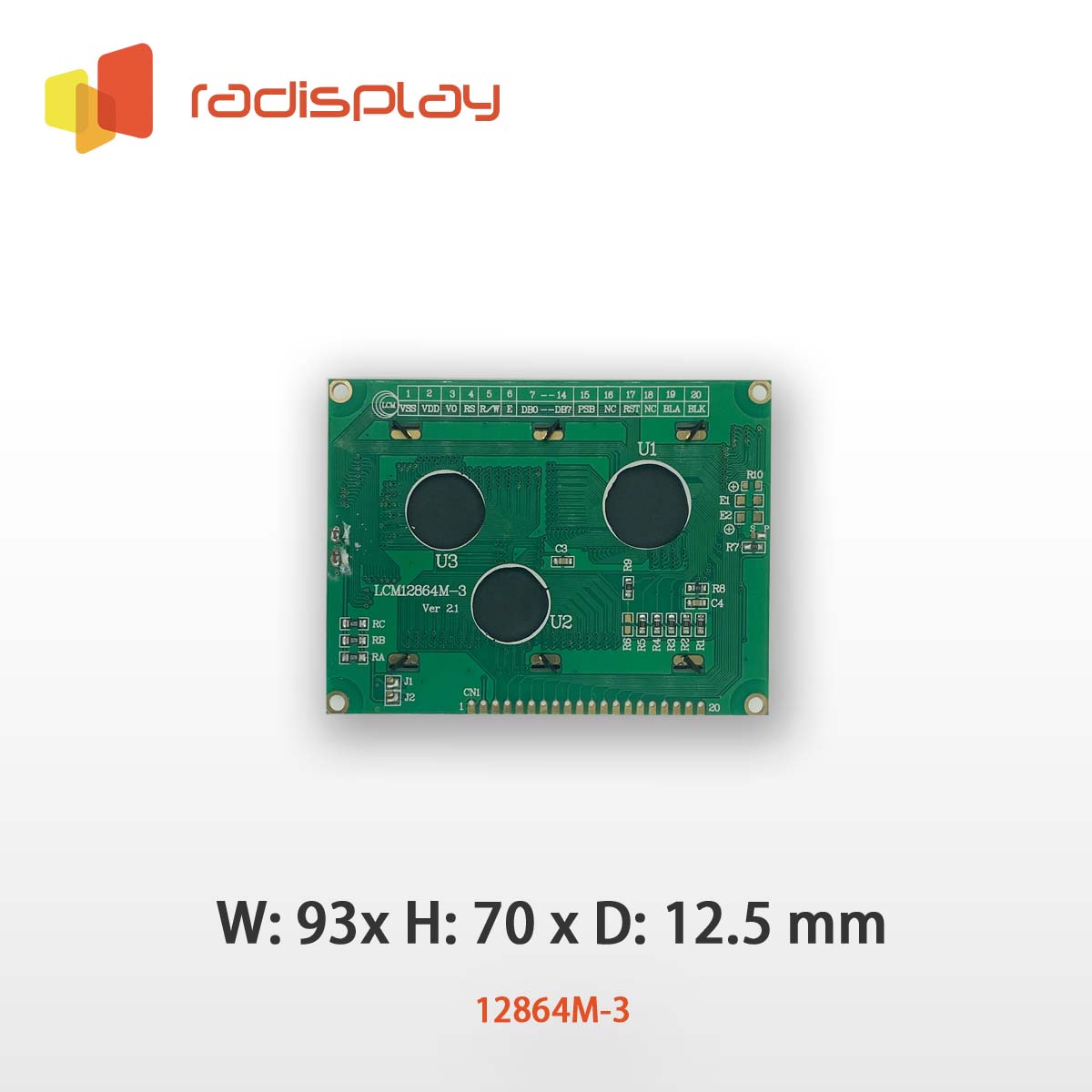

Module size(W x H x D) 93 x 70 x 12.5 mm
Viewing area(W x H) 72 x 40 mm
Character Size
Dot Size 0.48 x 0.48 mm
Dot pitch (W x H) 0.52 x 0.52 mm
Interface 8-bit Parallel interface
Driver Condition 1/32 Duty , 1/5 Bias
Driver IC ST7920
Operating temperature -20 - 70 ℃
