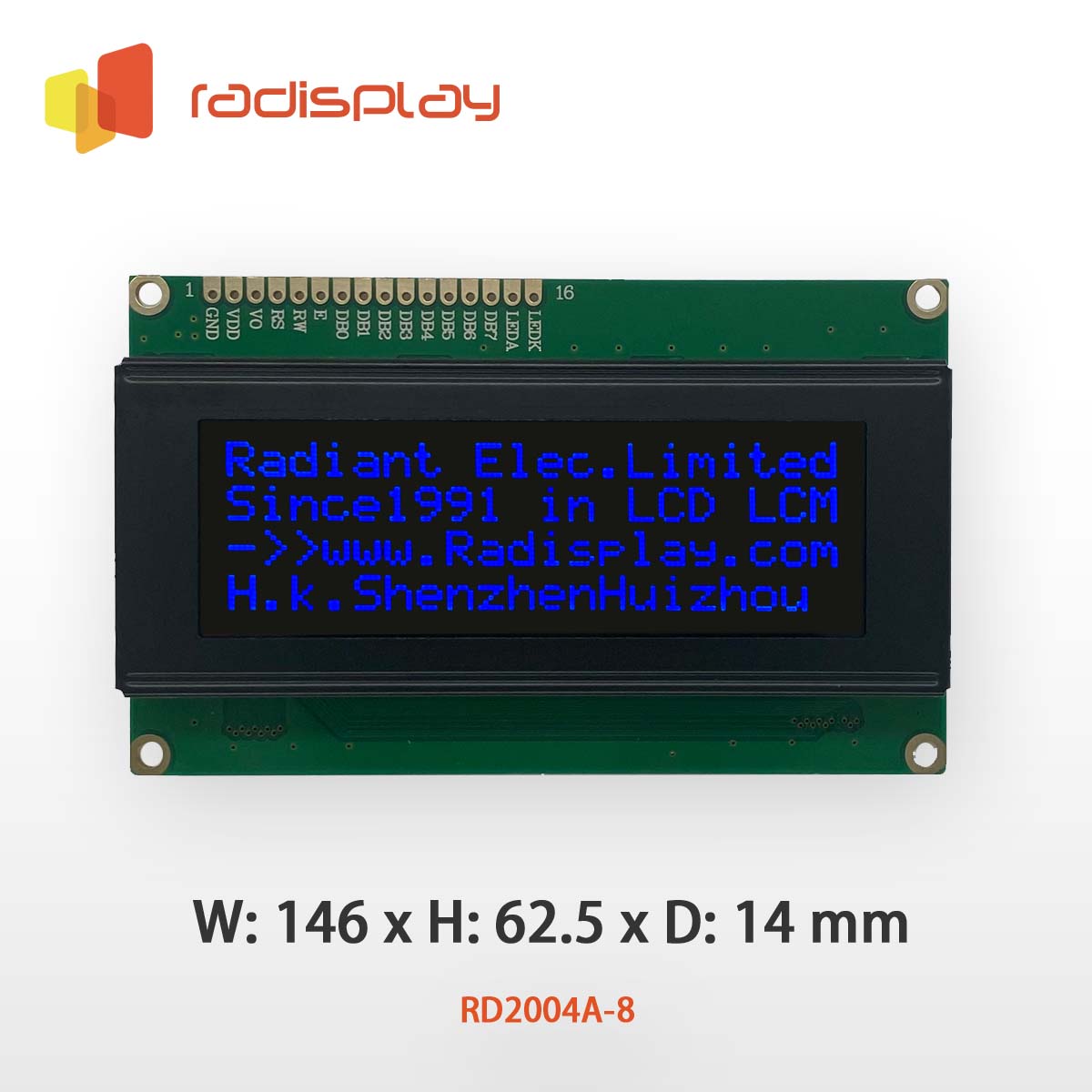

20x4 VATN Character LCD Display Module (RD2004A-8-VA)
RD2004A-8 VATN Alphanumeric Character LCD offers black background with high contrast for 20x4 display. With different backlight options,RD2004A-8-VA is your perfect choice for upgrade for your exiting 20x4 Character display.
The following color options are most widely ordered:
- RD2004A-8-VA-01 White on Black
- RD2004A-8-VA-02 Blue on Black
- RD2004A-8-VA-03 Green on Black
- RD2004A-8-VA-04 Red on Black
- RD2004A-8-VA-05 Amber on Black
In addition, a wide range of options are available for this model, including:
- Different Backlight
- Different Voltage (3.3V, 5.0V and other customized voltage)
- Different Interface (Including Serial SPI, I2C interface)
Specifications
| Module size（W x H x D） | 116 x 37 x 13.2 mm |
| Viewing area（W x H) | 85 x 18.6 mm |
| Character Size | 3.25 x 5.39 mm |
| Dot Size | 0.61 x 0.63 mm |
| Dot pitch (W x H) | 0.66 x 0.69 mm |
| Interface | 8-bit Parallel interface |
| Driver Condition | 1/16 Duty , 1/5 Bias |
| Driver IC | AIP31066 |
| Operating temperature | -20 - 70 ℃ |
